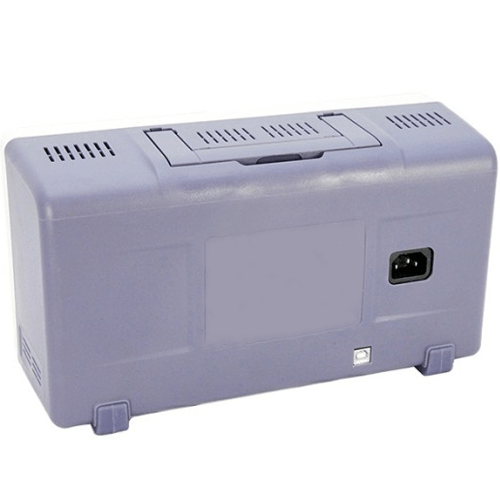

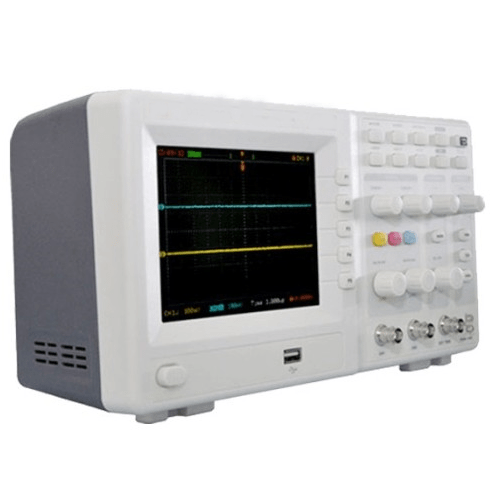

Enviro Test Construct Electronic Instrument Digital Oscilloscope
Enviro Test Construct Electronic Instrument Digital Oscilloscope - Image 2
Enviro Test Construct Electronic Instrument Digital Oscilloscope - Image 3
Enviro Test Construct Electronic Instrument Digital Oscilloscope - Image 4

Enviro Test Construct Electronic Instrument Digital Oscilloscope

This Electronic Instrument Digital Oscilloscope has a phase difference of ±3 degrees, vertical resolution of 8 bit, and input impedance of 1 MΩ.

SKU: ETCDOS-198 Category:

Features

  • 1 GS/s real time sampling rate
  • 2 analog channels
  • 320 x 240 resolution
  • Edge, pulse width, video, alternation



Technical Specification

Real-Time Sample Rate1 GSa/s
Equivalent Sample Rate50 GSa/s
Input Impedance1 MΩ or 1 pF
Horizontal Accuracy±0.01%
Vertical Sensitivity2 mV/div to 5 V/div
Vertical Resolution8 bit
Phase Difference±3 degrees
Sample Points1024 points
Bandwidth25 MHz
Storage Depth10 kpts
Display Resolution320 x 240
Dimension12.04 in x 5.19 in x 4.80 in (306 mm x 132 mm x 122 mm)
Weight4.85 lb (2.2 kg)
