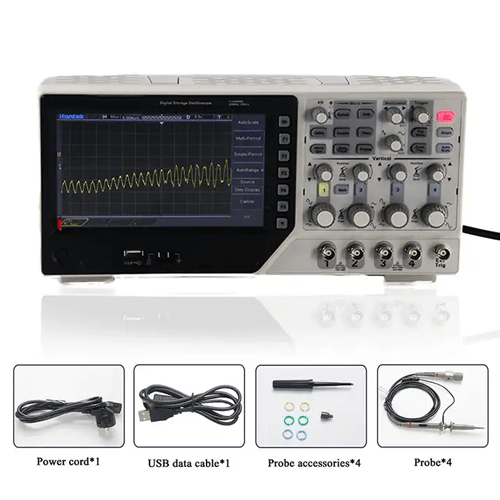

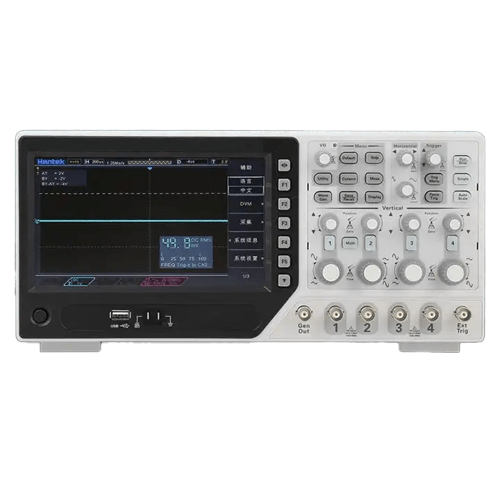

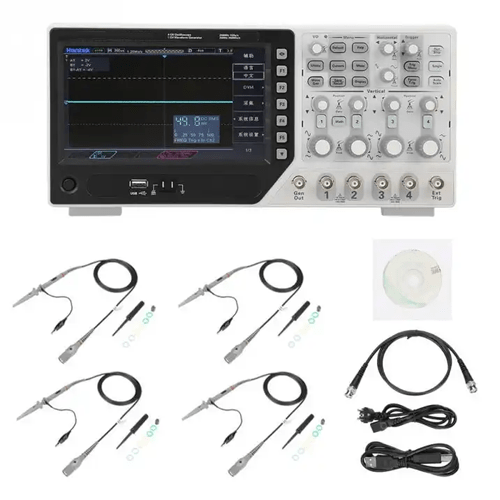

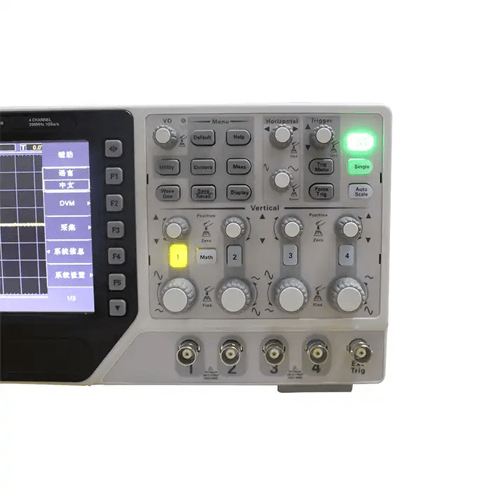

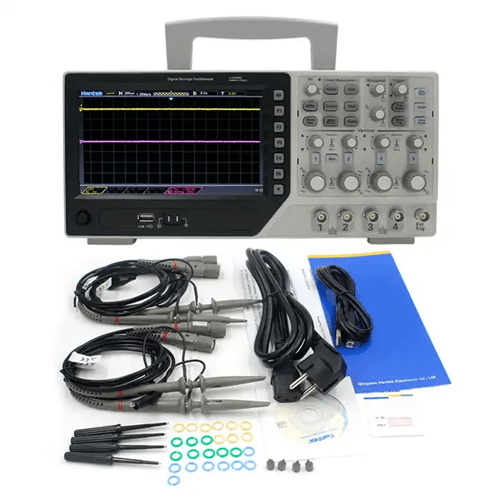

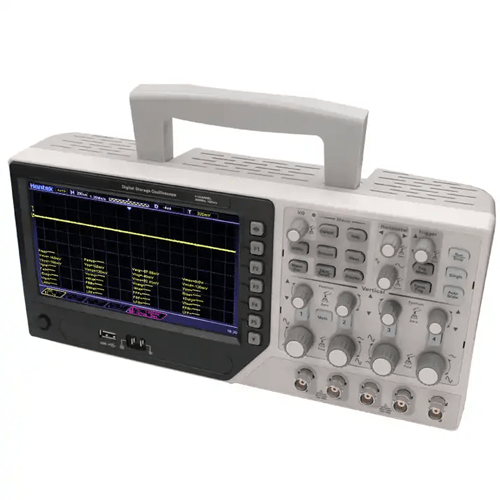

Features
- 4CH oscilloscope + EXT+ DVM + auto range function
- 200 MHz bandwidth
- Minimum range 500 μV/div
- 1 GS/s sample rate
- Over 32 types of auto measurement function
- Advanced digital trigger system, high trigger sensitivity
- Over 14 types of trigger function: edge, overtime, pulse, pattern, etc.
- Integrated USB host or device
- Serial bus triggering and decode
- Support a variety of SCPI remote control command
- Support optional RS232 port, LAN port.
- Stable and reliable quality, sturdy and durable.
Technical Specification
| SEC or DIV Range | 2 ns/div to 100 s/div |
| Sample Rate Range | 1 GS/s |
| Sample Rate and Delay Time Accuracy | ±50 ppm |
| Holdoff Range | 20 ns to 10 s |
| Time Range | 8 ns to 10 s |
| Resolution | 8 ns |
| Data Index | 0 to 7 |
| Input Impedance | 20 pF ±3 pF |
| Frequency | 1 kHz |
| Power Consumption | <30 W |
| Display | 7 in (17.78 cm) |
| Operating Temperature | 32° F to 122° F (0° C to 50° C) |
| Storage Temperature | -40° F to 159.8° F (-40° C to 71° C) |
| Volume | 12.51 in x 4.33 in x 5.90 in (318 mm x 110 mm x 150 mm) |
| Weight | 8.59 lb (3.9 kg) |
