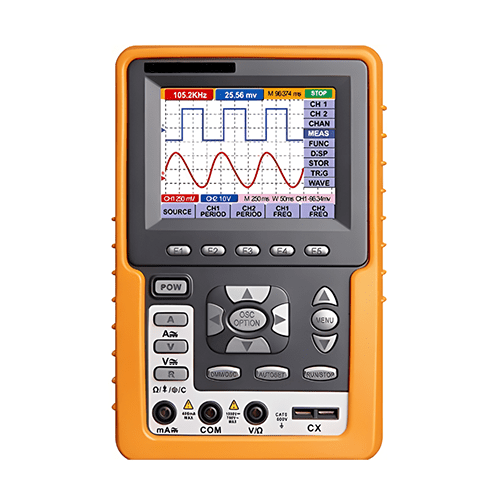

Enviro Test Construct Dual Channel Oscilloscope

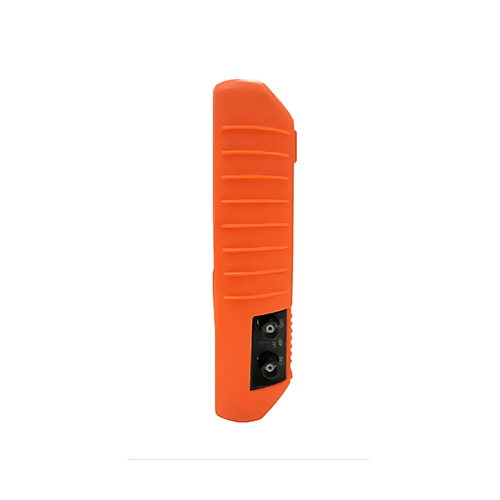

Enviro Test Construct Dual Channel Oscilloscope - Image 2

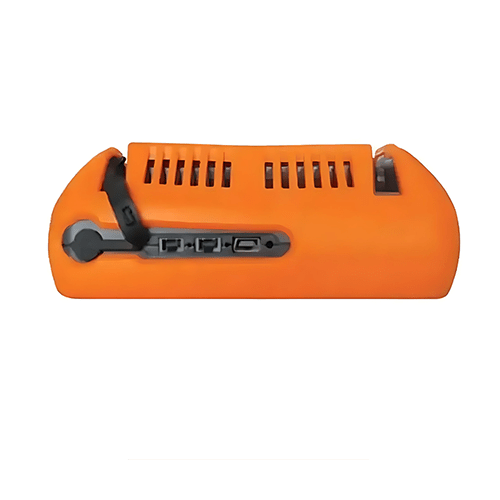

Enviro Test Construct Dual Channel Oscilloscope - Image 3

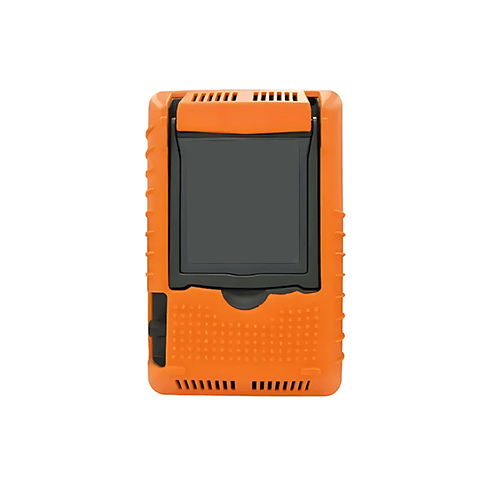

Enviro Test Construct Dual Channel Oscilloscope - Image 4

Enviro Test Construct Dual Channel Oscilloscope

This dual-channel oscilloscope has a horizontal scale of 5 ns/div to 100 s/div, a bandwidth of 20 MHz, a sample rate of 100 MS/s, and a display of 3.7 in.

SKU: ETCDOS-167 Category:

Technical Specification

Bandwidth20 MHz
Sample Rate100 MS/s
Horizontal Scale5 ns/div to 100 s/div
Rise Time≤17.5 ns
Input Impedance1 MΩ ± 2%, in parallel with 20 pF ± 5 pF
Probe Attenuation Factor1 X, 10 X, 100 X, 1000 X
Input Impedance1 MΩ ± 2%, in parallel with 20 pF ± 5 pF
Display3.7 in (9.39 cm)
Vertical Resolution8 bits
Vertical Sensitivity5 mV/div to 5V/div
DC Gain Accuracy±5%
Phase Difference±3 degrees
Power Supply100 V to240V AC, 50 Hz or 60 Hz
Li-ion Battery7.4V, 3500 mAh
Input Impedance10 MΩ
Capacitance51.2 nF to 100 uF: ± (3% ± 3 digit)
Diode0 V to 1.5 V
On or off-measurement<50 (±30) beeping
