Overview

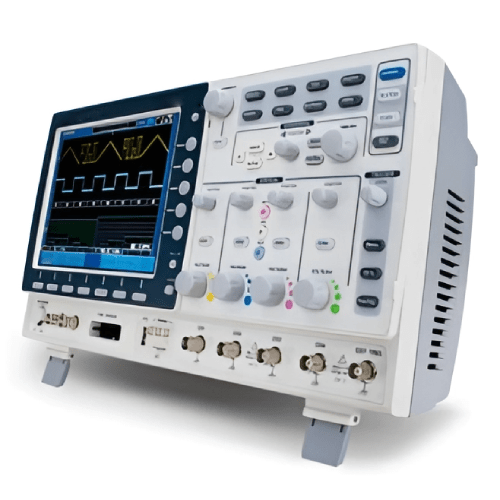

Enviro Test Construct digital storage oscilloscope offers 2 and 4-channel configurations and wide bandwidth selections, including 300 MHz, 200 MHz, 100 MHz and 70 MHz Each model provides 2 GSa per maximum real-time sampling rate and 100 GSa per s high-speed equivalent-time sampling rate. Equipped with an 8-inch 800 x 600 high-resolution TFT LCD display, 1 mV/div to 10 V/div vertical range and 1 ns per div to 100 s/div time base, this product can faithfully demonstrate waveforms of complicated and obscure signals.
This product provides 2 Mega point record length, and Waveform Search and Segmented Memory functions as standard features. The events of interest can be captured and saved into the Segmented Memory, which can be divided into 2048 sections for observation, while the irrelevant waveforms can be ignored. Consequently, the overall efficiency of memory usage can be enhanced. Under Waveform Search mode, after the input signal is triggered, this product is able to Search and Mark the waveform sections, which comply with user-defined search condition and threshold level within the whole memory. Meanwhile, with Zoom window and Play/Pause button to scroll through whole displayed waveform, the user can rapidly navigate all the waveforms in an efficient way.
Features
- 300 MHz, 200 MHz, 100 MHz or 70 MHz bandwidth
- 2 or 4 Input Channels
- 2 GSa/s Real-time, 100 GSa/s sampling equivalent time
- 2 Mega Points Record
- 1mV/div to 10V per div Vertical Range
- Time base range of 1 ns per div to 100 s per div
- 8-inch 800 x 600 TFT LCD display
- Waveform Update: 80,000 wfm/s
- Segmented Memory, Waveform Search Functions
- Zoom window navigation, play or pause for rapid waveform navigation
- 36 Auto Measurement Functions
- Optional 8 or 16 Digital Channels with Logic Analyzer
- Optional Function Generator
- USB Standard, remote control, LAN or GPIB Optional
- CAN or LIN bus analysis, advanced Logic, datalog, DVM, H-expansion
Technical Specifications
| Bandwidth | 70 MHz, 100 MHz, 200 MHz or 300 MHz |
| Deeper Memory Depth | 2 m |
| Vertical Resolution | 8 bit 1 mV/div to 10 V/div |
| Input Coupling | AC, DC, GND |
| DC Gain Accuracy | ±3% x | Readout | ±0.1 div ± 1 mV |
| Polarity | Normal and invert |
| Maximum Input Voltage | 300 Vrms |
| Offset Position Range | 1 mV/div to 20 mV/div: ±0.5 V 50 mV/div to 200 mV/div: ±5 V 500 mV/div to 5 V/div: ±50 V 10 V/div: ± 500 V |
| Trigger Source | CH1, CH2, CH3, CH4, Line, EXT, D0 to D15 Four channels mode only |
| Trigger Mode | Auto (support roll mode for 100 ms/div and slower), normal or single |
| Trigger Type | Edge, pulse width, video, pulse runt, rise and fall, time out, alternate, event delay (1 event to 65535 event), logic, bus |
| Holdoff Range | 10 ns to 10 s |
| Coupling | AC, DC, LF rej, noise rej |
| Sensitivity | DC to 100 MHz approx. 1 div or 1.0 mV 100 MHz to 200 MHz approx. 1.5 div or 15 mV 200 MHz to 300 M approx. 2div or 20mV |
| External Trigger Range | ±15 V |
| External Trigger Sensitivity | DC to 100 MHz approx. 100 Mv 100 MHz to 200 MHz approx. 150 Mv 200 MHz to 300 MHz approx. 2 div or 20 mV |
| Rampling Rate | 2 GSa/s |
| High Resolution | 8 in 800 x 600 |
| Dimensions | 14.96 in x 8.66 in x 5.70 in (380 mm x 220 mm x 145 mm) |
| Weight | 9.25 Ib (4.2 kg) |
