Overview

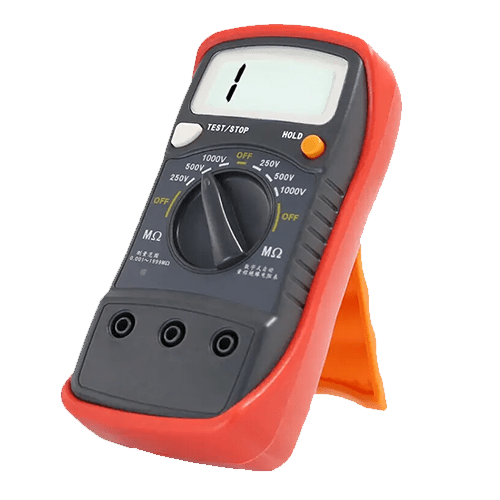

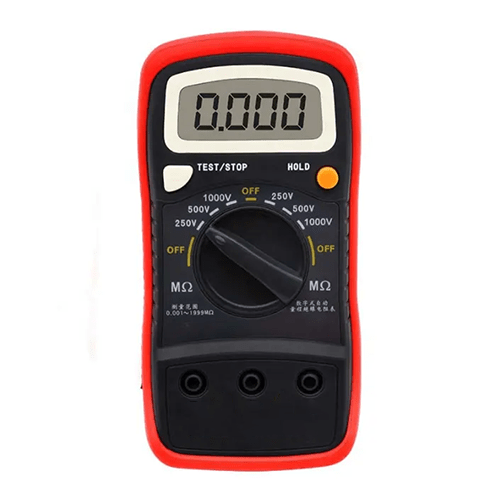

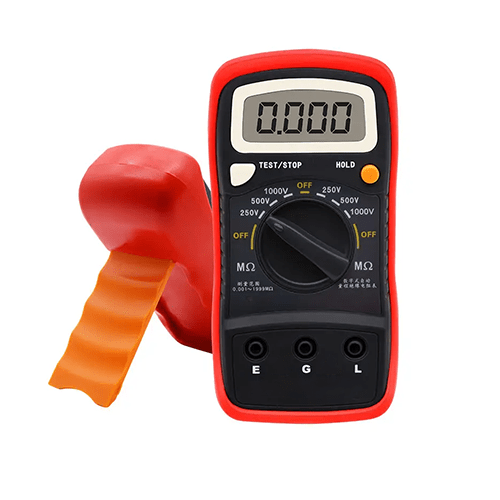

Enviro Test Construct digital resistance ohmmeter is a digital insulation resistance tester, output test voltage can be switched among 250 V or 500 V or 1000 V. More advantages, such as stable performance, high accuracy, auto range and data hold. It is an ideal tool for electrical equipment maintenance, testing and inspection.
Features
- Accurate, reliable and easy to measure
- Wide measuring range of voltage and resistance
- Large LCD display, convenient to read data
- Maximum display counts 1999
- Stable performance
- LED light indicator
- Data hold and auto range
- Wide range of applications
Technical Specifications
| Display Count | 1999 digits |
| Auto range | Yes |
| Data hold | Yes |
| High Voltage Indication | Yes |
| Low battery Indication | Yes |
| Test voltage | 100 V or 250 V or 500 V or 1000 V |
| Rated voltage | 250 V or 500 V or 1000 V |
| Minimum resolution | 0.001 MΩ |
| Open circuit voltage | 90 % to 110 % of the rated voltage |
| Measurement range | 0.001 MΩ to 1999 MΩ |
| Accuracy | ± (5 % RDG +5) 250 V |
| Power | 9 V battery (not included) |
| Size | 5.4 in x 2.7 in x 1.5 in (138 mm x 69 mm x 39 mm) |
