Overview

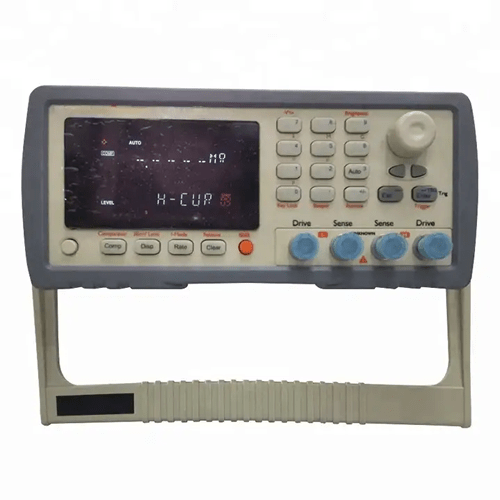

digital resistance meter is designed for a wide range of applications involving resistance measurements. These applications include measuring pure resistance, the resistance of motor and transformer windings, enamel-insulated wire resistance, relay or switch connector contacts, PCB patterns, chip inductor DC resistance, wire resistance, as well as resistance in components used in vehicles (such as cars, ships, and planes) for fastening or securing purposes. This product provides accurate and reliable measurements for these various resistance-related tasks.
Technical Specification
| Parameter | DC Resistance |
| Accuracy | 0.05% |
| Measurement Range | 1μΩ to 3 MΩ |
| Measurement Current | I-max: <1 A Measuring Mode: High Current, Low Current and Pulse Current |
| Range | 9 Automatic or Manual |
| Rate | 60 times or second,15 times or second, 2 times or second |
| Display | Show or ΔABS or Δ% or Sorting Result |
| VFD Display | 30,000 |
| Adjustment | Short-circuit Zero-Adjust for each range. REL function |
| Comparator | 30 sets of measurement conditions, HI, IN, LOW, GD, NG display and output, adjustable beep and volume |
| Trigger | Internal, Manual, External or Remote Trigger |
| Interface | RS-232C, Handler (EXT-I/O) inside |
| Method | Four-terminal resistance measurement. |
| Temperature Compensation | Accuracy: 32.36 °F (0.2 °C) Range: 32 °F to 176 °F. (0 °C to 80 °C) |
| Other | High brightness, VFD Display. Keypad lock function. Data Hold function. |
| Power Supply | Voltage: 198 V AC to 240 V AC Frequency: 50 Hz Max Power: 15 VA |
| Dimensions | 10.4 in x 4.2 in x 13.8 in (264 mm x 107 mm x 350 mm) |
| Weight | 8.8 lb (4 kg) |
