Overview
Enviro Test Construct digital phosphor oscilloscope with up to 500 MHz bandwidth and 5 GS or s sample rate, the TDS3000C Oscilloscope Series provides you with the performance to visualize fast-changing signals in a compact, battery-capable design. With dedicated front-panel controls and 25 automatic measurements, it is easy to use so you spend less time re-learning how to use your oscilloscope and more time on the task at hand.
Features
- Front-panel USB host port for easy storage
- transfer of measurement data
- 25 automatic measurements
- FFT standard
- Multiple language user interface
- Wave Alert automatic waveform anomaly detection

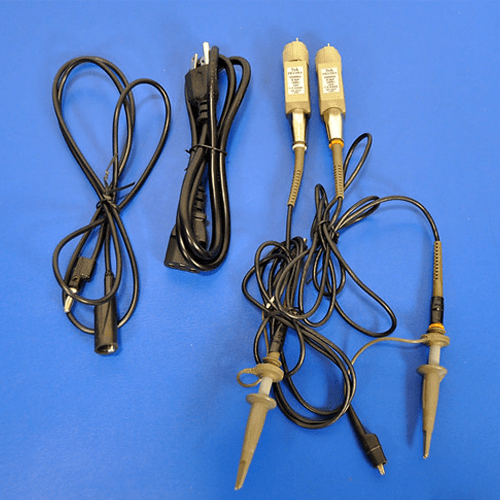

- Tek Probe interface supports active, differential
- current probes for automatic scaling and units

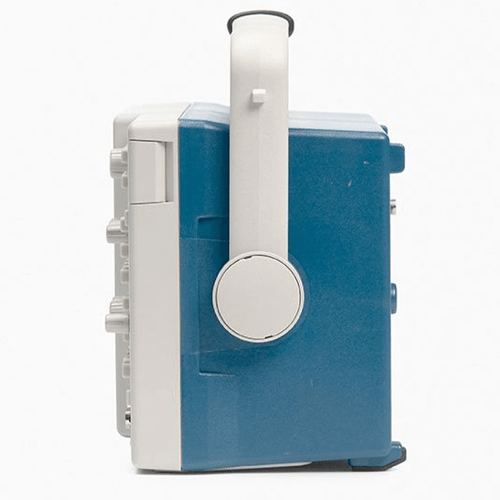

- Portable design
- Lightweight design 7 lb (3.2 kg) for easy transport
- Optional internal battery operation uses up to 3 hrs without line power
- Application modules for specialized analysis
- Advanced analysis module
- Limit testing module
- Telecommunications mask testing module
- Extended video module
Technical Specification
| Operating Temperature | 32 ℉ to 122 ℉ (0 ℃ to +50 ℃) |
| Input coupling | AC, DC, GND |
| Input impedance | 1 MΩ in parallel with 13 pF or 50 Ω |
| Vertical resolution | 9 bits |
| DC gain accuracy | ±2% |
| Position range | ±5 div |
| Time base accuracy | ±20 ppm over any 1 ms time interval |
| bandwidth models | 100 MHz, 300 MHz, and 500 MHz |
| channel models | 2 or 4 analogs |
| Sample rates | 5 GS or s real time on all channels |
| waveform capture rate | 3,600 wfms or s continuous |
| Dimensions | 14.7 in x 6.9 in x 5.8 in (375 mm x 176 mm x 149 mm) |
| Weight | 9.9 lb (4.5 kg) |
