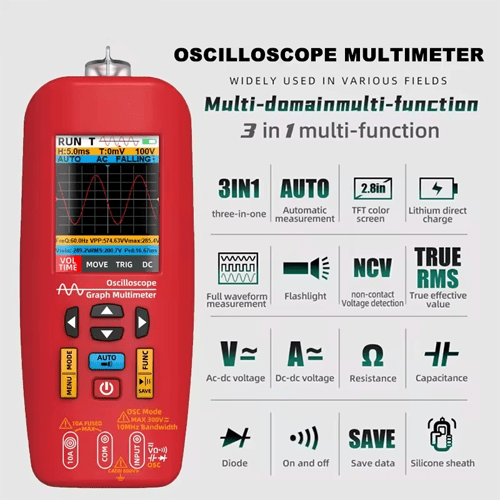

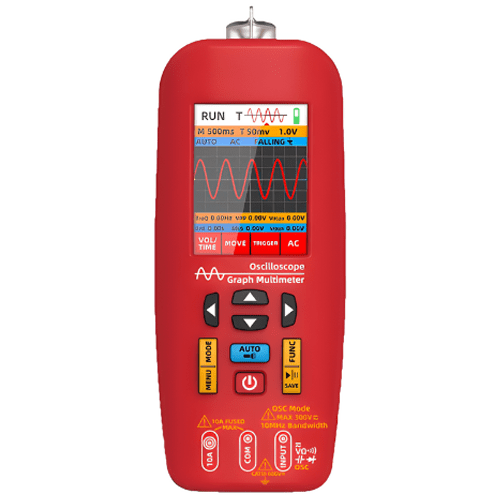

Name: Enviro Test Construct Colour Screen Digital Oscilloscope -
SKU: ETCDOS-203

Technical Specifications

Display Type	Digital Only
Bandwidth	10 MHz
Sampling frequency	48 MSa or s
Input Coupling	DC, AC
Input impedance	1 M ohms
Input ratio	x1, x10
Input max voltage	±300 V
Horizontal sampling rate	1.5 Sa/s to 48 MSa/ s
Horizontal sweep	100 ns/div to 20 s/div
Horizontal time base accuracy	20 ppm
Horizontal sampling depth	64 KB
Vertical sensitivity	200 mV/div to 100 V/div
Vertical low-frequency response	> 10 Hz
Vertical sampling depth	<10 ns
Vertical gain accuracy	±3%
DC voltage range	0.1 mV to 600 V
DC voltage resolution	0.01 mV
DC voltage accuracy	± (1.0%+5)
AC voltage range	0.1 mV to 600 V
AC voltage resolution	0.01 mV
AC voltage accuracy	± (1.2%+5)
DC current range	0.001 A to 10 A
DC current resolution	0.001 A
DC current accuracy	± (1.2%+3)
AC current range	0.001 A to 10 A
AC current resolution	0.001 A
AC current accuracy	± (1.2%+3)
Resistance range	0.1 ohms to 60 M ohms
Resistance resolution	0.1 ohms
Resistance accuracy	± (1.2% + 5)
Capacitance range	0.01 nF to 99.99 mF
Capacitance resolution	0.01 nF
Capacitance accuracy	± (5.0%+10)
Diode	0.000 V to 3.000 V
Continuity	If the resistance 50 ohms, the buzzer sounds
Power	Built in 2000 mA lithium battery
Display Type	Digital Only
Measuring Range	600 V
Accuracy Class	0.01 V
Operating Temperature	32 ℉ to 104 ℉ (0 ℃ to 40 ℃)
Size	7.36 in × 2.91 in × 1.59 in (187 mm × 74 mm × 40.5 mm)
Weight	0.59 lb (269 g)
