Overview

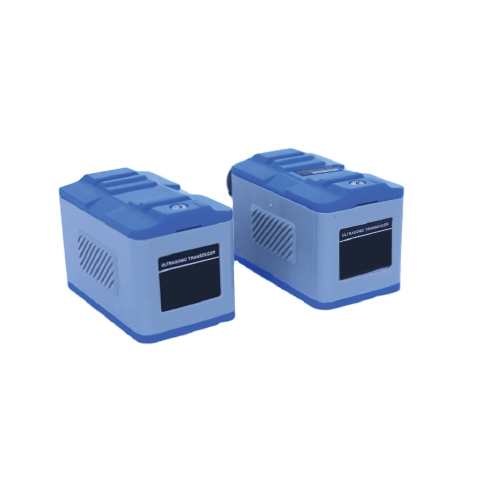

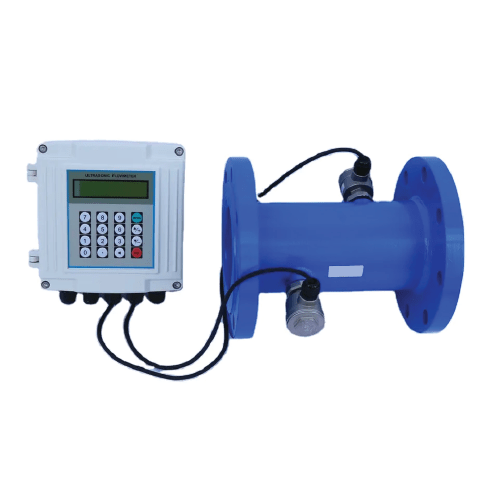

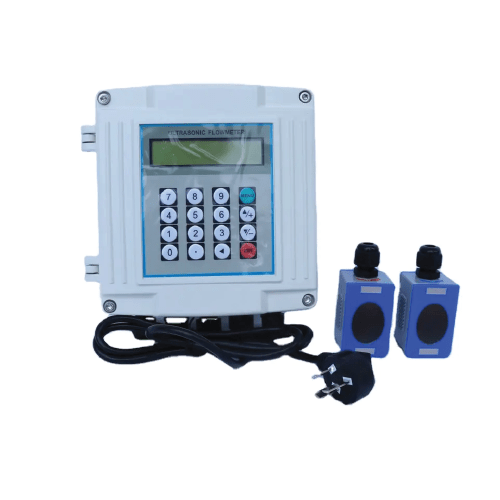

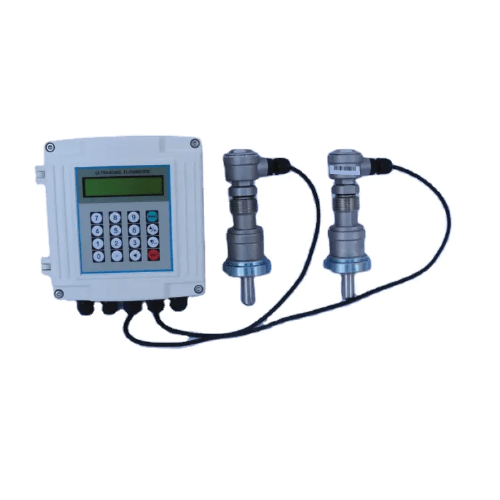

Enviro Test Construct clamp on ultrasonic flow meter is composed of converter and clamp-on sensor. The flow measurement of various liquids can be completed by pasting the clamp-on Sensor on the surface of the pipe. Compared with the traditional measuring meter, it does not need to break the pipe and cut off the flow, so it is convenient and fast to install, and truly realizes the non-destructive installation.
Technical Specification
| Accuracy | ±1% |
| Flow rate range | 0 + -10m / s, positive and negative measurement |
| Pipe diameter | DN15-DN6000 |
| Fluid temperature | 86 °F to 290 °F (30℃-160℃) |
| Pipe material | Steel, stainless steel, cast iron, copper, PVC, aluminium, fiberglass and other all the tight pipe, allowing a lining |
| Signal output | 1 circuit 4 to 20mA current output, impedance 0 to 1k, accuracy 0.1%, |
| Signal input | 3 circuit 4 to 20mA current input, do data acquisition Connect three-wire PT00 platinum resistance, to achieve heat measurement |
| Communication interface | Isolated RS485 serial interface, support MODBUS protocol |
| Data storage | SD card timer storage settings parameters and measurement results (optional) |
| Power supply | DC 8 V to 36 V or AC 85 V to 264 V |
