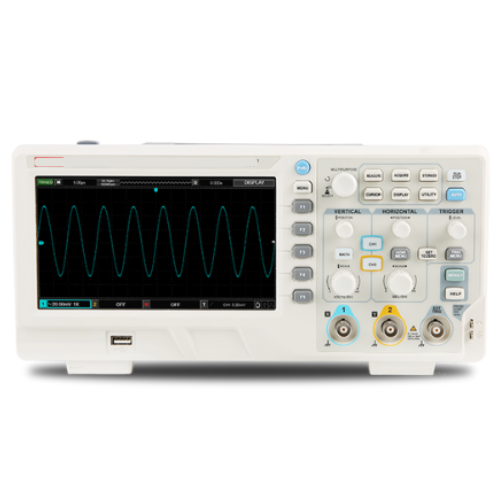

Features
- Dual analog channels with adjustable range from 1mV/div to 20V/div
- 7-inch widescreen LCD with 64k color display for clear visibility
- Plug-and-play USB for data transfer and remote PC control
- Automatic measurement of 32 waveform parameters
- Built-in waveform recording and replay functionality
- Multilingual user interface for easy operation
Technical Specifications
| Number of Channels | 2 |
| Bandwidth | 100 MHz |
| Maximum Sampling Rate | 1 GS/s |
| Rise Time | ≤3.5 ns |
| Memory Depth | 25 kpts |
| Waveform Capture Rate | ≥2,000 wfms/s |
| Vertical Sensitivity (V/div) | 1 mV/div to 20 V/div |
| Time Base Range (s/div) | 2 ns/div to 50 s/div |
| Storage Options | Setup, Waveform, Bitmap |
| Trigger Modes | Edge, Pulse, Video, Slope, Alternate |
| Interface | USB OTG |
| Power Supply | 100 to 240 V AC, 45 to 440 Hz |
| Display | 7 in TFT LCD, 800 x 480 pixels |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Product Weight | 4.85 lb (2.2 kg) |
| Product Size (W x H x D) | 12.05 in x 5.79 in x 4.80 in (30.6 cm x 14.7 cm x 12.2 cm) |
