Overview

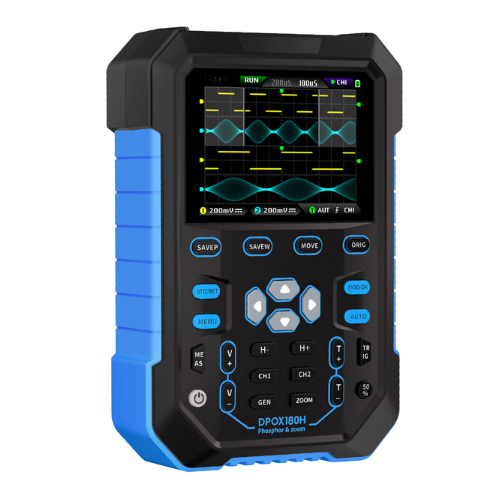

Enviro Test Construct’s digital phosphor 180mhz dual-channel oscilloscope delivers high-precision waveform analysis with a powerful 500MS/s sample rate and advanced digital phosphor technology. Designed for professionals and engineers, it offers superior signal visibility with features like FFT spectrum analysis, grayscale and color temperature display, waveform storage, and intelligent anti-burning protection. Its compact handheld design, 7-inch color display, and multiple trigger modes make it highly versatile for fieldwork, research, and lab applications. Equipped with a built-in signal generator, 3000mAh rechargeable battery, and USB transmission interface, this device ensures portability and efficiency. With a storage depth of 120Kpts and up to 50,000 wfms/s capture rate, it provides accurate, real-time data analysis.
Features
- Compact and portable handheld design
- Dual-channel digital oscilloscope with real-time capture
- High-resolution color display for clear waveform visibility
- Intelligent anti-burning protection for durability
- Multiple trigger modes for flexible testing
- Integrated signal generator with standard function signals
- Waveform saving and screenshot storage for data tracking
- Upgradeable firmware for extended functionality
- Long battery life with rechargeable power source
- Supports USB transmission for fast data transfer
Technical Specifications
| Number Of Channels | 2 |
| Analog Bandwidth | 180 MHz |
| Maximum Sampling Rate | 500 MS/s |
| Storage Depth | 120 Kpts |
| Capture Signal | 500 |
| Waveform Capture Rate | 50,000 wfms/s |
| Input Coupling | DC or AC |
| Input Impedance | 1 MΩ to 18 pF |
| Vertical Sensitivity | 5 mV to 10 V (1X) |
| Measurement Range | 40 mV to 80 V (1X) |
| Time Base Range | 5 ns to 50 s |
| DC Accuracy | ±2% |
| Time Accuracy | ±0.01% |
| Trigger Detection | Digital trigger |
| Trigger Modes | Auto, Single, Normal |
| Trigger Edge | Rising or Falling |
| Cursor Measurement | Frequency, Period, Amplitude |
| Parameter Measurement | 12 kinds |
| Signal Generator | 14 standard function signals |
| Display Size | 2.8 inches |
| Display Resolution | 320 × 240 |
| Display Technology | IPS full view |
| Expansion Interface | USB transmission |
| Waveform Storage | 250 groups |
| Screenshot Storage | 90 |
| Auto Power-Off | 5 minutes to 2 hours |
| Charging Requirements | 5 V 2 A |
| Battery Capacity | 3000 mAh |
| Standby Time | 3.5 hours at full charge |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Dimensions (L × W × H) | 5.43 in × 3.54 in × 1.57 in (13.8 cm × 9 cm × 4.5 cm) |
| Product Weight | 0.88 lb (0.4 kg) |
