Overview

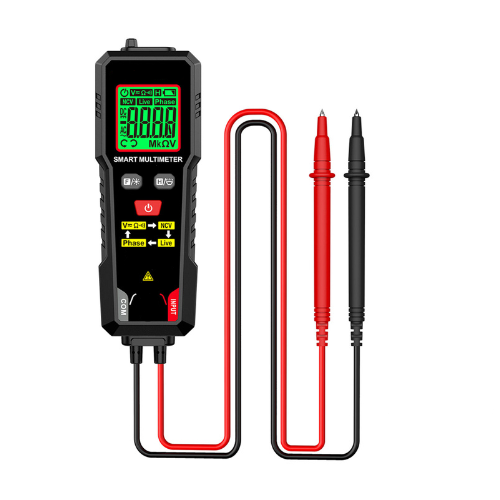

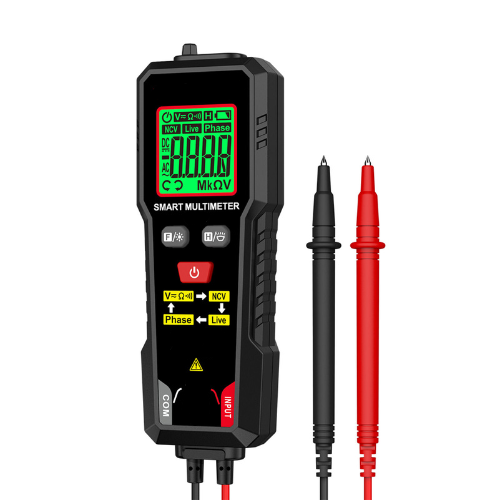

Enviro Test Construct’s digital live wire voltage detector offers a compact and reliable live wire detector designed for quick and accurate voltage detection, ideal for both professionals and DIY users. It features live and neutral wire checking with automatic signal strength indication. A weak signal triggers a green backlight and displays “—L” while a strong signal activates a red backlight, emits a rapid beeping sound, and shows “—H”. This device includes a built-in flashlight for enhanced visibility in dim environments. With a maximum display of 2000 counts, it is constructed from durable ABS material and operates on two AAA batteries (not included). Lightweight and portable, this product is suitable for various electrical testing tasks and is supported by fast, safe delivery and experienced customer service.
Features
⦁ Auto Testing
⦁ AC/DC Voltage Measurement
⦁ Non-Contact Voltage Detection
⦁ LIVE Wire Detection
⦁ Phase Sequence Detection
⦁ Overrange Warning
⦁ Continuity Test
⦁ Built-in Flashlight
Technical Specifications
| Display Type | LCD |
| DC Voltage Range | 200 mV, 2 V, 20 V, 200 V, 600 V |
| AC Voltage Range | 200 V, 600 V |
| DC Current Range | 200 μA, 2 mA, 20 mA, 200 mA, 10 A |
| AC Current Range | 200 μA, 2 mA, 20 mA, 200 mA, 10 A |
| Resistance Range | 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 20 MΩ |
| Capacitance Range | 2 nF, 20 nF, 200 nF, 2 μF, 20 μF, 200 μF, 2 mF |
| Frequency Range | 10 Hz to 200 kHz |
| Temperature Measurement | -4 °F to 1832 °F (-20° C to 1000 °C) |
| Continuity Test | Yes |
| Diode Test | Yes |
| Auto Power Off | Yes |
| Data Hold Function | Yes |
| Backlight | Yes |
| Power Supply | 2 x AAA Batteries |
| Dimensions | 5.9 in x 2.8 in x 1.9 in (150 mm x 70 mm x 48 mm) |
| Weight | 0.44 lb (200g) |
