Overview

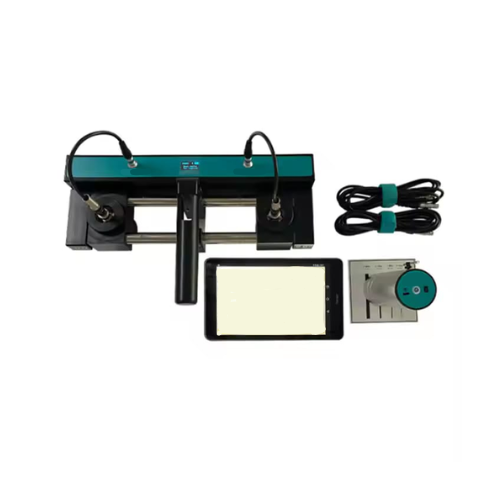

Enviro Test Construct Wireless Crack Depth and Width Monitoring Detector offers a highly efficient solution for measuring and analyzing cracks in concrete and other structural surfaces. This device is designed for automatic measurement of crack width and depth, providing intelligent interpretation and secure storage of data. It supports both fast and standard measurement modes and can operate in automatic or manual interpretation modes, making it versatile for various inspection requirements. This product features an integrated, compact design for easy portability. It comes equipped with a wireless camera probe with a quick-shot button for simple operation. The main unit utilizes a Windows-based tablet with full touch functionality, enabling intuitive control and convenient data management. The device allows for zooming of images and manual interpretation of scales, providing detailed insights into oblique fractures without vertical limitations.
Features
- Integrated and compact design for easy portability and on-site use.
- Wireless camera probe with quick-shot button for convenient operation.
- Main unit uses a Windows tablet with full touch interface for intuitive control.
- Intelligent interpretation of oblique cracks, with zoomable images and manual scale reading.
- Supports both automatic and manual measurement modes.
- Fast and standard measurement modes for flexible testing.
- Built-in lithium battery providing over 10 hours of continuous operation.
- WIFI and Bluetooth connectivity for seamless communication between components.
- Data analysis and report generation directly on the tablet, no need for a separate computer.
- Large-capacity storage via tablet and TF card, allowing unlimited data collection.
- Non-destructive testing with no marking required, saving time and effort.
- Suitable for a wide range of working environments.
- Complies with relevant concrete testing standards for reliable and accurate results.
Technical Specifications
| Applicable Standard | GJ125-99 House Safety Appraisal Standard, CECS 21:2000 Technical Specification for Ultrasonic Testing of Concrete Defects |
| Main Control Unit | 8-inch Tablet PC, Windows OS, 32GB storage |
| Wireless Seam Width Gauge | Test Range: 0 in to 0.39 in (0 mm to 10 mm), Accuracy: 0.0004 in (0.01 mm) |
| Wireless Seam Depth Gauge | Test Range: 0.20 in to 19.69 in (5 mm to 500 mm), Digital Magnification: 60× |
| Measurement Accuracy | 0.20 in (5 mm) or 2% to 10% of actual depth |
| Operating Mode | Touch screen + probe automatically triggered / shortcut keys |
| Connection Type | WIFI, Bluetooth |
| Measurement Mode | Automatic / Manual interpretation, Fast / Standard measurement |
| Power Supply | Built-in lithium battery |
| Working Hours | More than 10 hours |
| Certification | ISO, CE |
| Working Environment | 14°F to 104°F (-10℃ to 40℃), <90% RH |
| Dimensions | 16.54 in × 5.51 in × 13.19 in (420 mm × 140 mm × 335 mm) |
| Weight | 211.64 oz (6.000 kg) |
