Overview

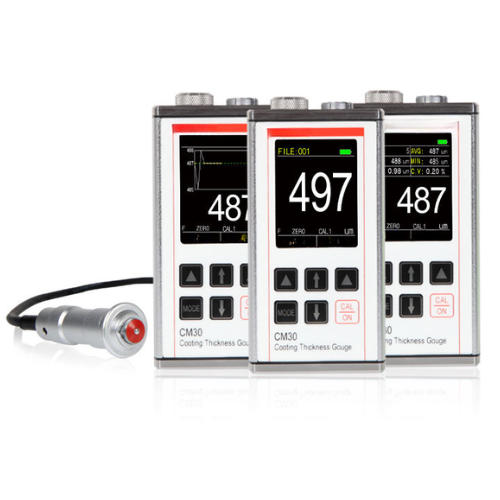

Enviro Test Consrtuct Waterproof Current Coating Thickness Gauge with Color Screen and USB is a high-precision, multi-functional device designed for measuring the thickness of coatings on both ferrous and non-ferrous metal substrates. It uses the magnetic method for ferrous metals such as steel and iron, and the eddy current method for non-ferrous metals like aluminum and copper. This device can accurately measure coatings such as paint, powder, plastic, rubber, corrosion protection layers, phosphate coatings, and more. It features a replaceable probe system, allowing users to select from multiple probes depending on the measurement range and type of substrate. The device supports a wide range of coating thickness, making it versatile for industrial and professional applications. This product is built with an IP68 waterproof and dustproof rating, ensuring durability and reliable performance even in harsh working environments. The all-metal housing with anodized and sandblasted finish provides strength, wear resistance, and ergonomic comfort, while CNC-processed screen windows improve positioning accuracy.
Features
- Measures coating thickness on both ferrous and non-ferrous metals using magnetic and eddy current methods
- Wide measuring range up to 3000 µm with multiple optional probes for different applications
- IP68 waterproof and dustproof design for reliable use in harsh environments
- Durable all-metal housing with anodized and sandblasted finish for wear resistance and ergonomic comfort
- 2.4-inch color IPS screen with clear, large-value display for easy reading
- Statistics interface showing number of tests, average, max, min, standard deviation, and coefficient of variation
- Trend chart displaying the latest 20 measurements with real-time average values
- User debugging function allows multi-point probe calibration for accurate and stable readings
- Large storage capacity: up to 200,000 measurements in 200 files with 1,000 measurements per file
- Supports both metric (µm/mm) and imperial (mils) units with USB 2.0 communication port
- Replaceable probes including ferrous and non-ferrous options for versatile measurement needs
- Ergonomic arc-shaped design and CNC-processed screen window for precise positioning
Technical Specifications
| Product Name | Magnetic and Eddy Current Coating Thickness Gauge with Color Screen and USB |
| Measuring Principle | Magnetic Method (Fe), Eddy Current Method (NFe) |
| Measuring Range | 0 µm to 3000 µm |
| Display | 2.4″ Color IPS LCD, 320 x 240 pixels |
| Languages | Chinese / English |
| Storage Capacity | 200 files, each file stores 1000 measurements and 6 statistics |
| Communication Port | USB 2.0 (Full Speed) Connector |
| Power | 2 × AA batteries |
| Units | Metric (µm, mm) / Imperial (mils) |
| Material | Stainless Steel |
| Protection Grade | IP68 Waterproof and Dustproof |
| Probe Options | Replaceable probes: Ferrous (F3), Non-Ferrous (F2, FN1.5), Large Range (F10 up to 10,000 µm) |
| Interface Features | Statistics interface, trend chart for latest 20 measurements |
| User Functions | Multi-point probe calibration, file management |
| Item Weight | 81.1 oz (2.3 kg) |
