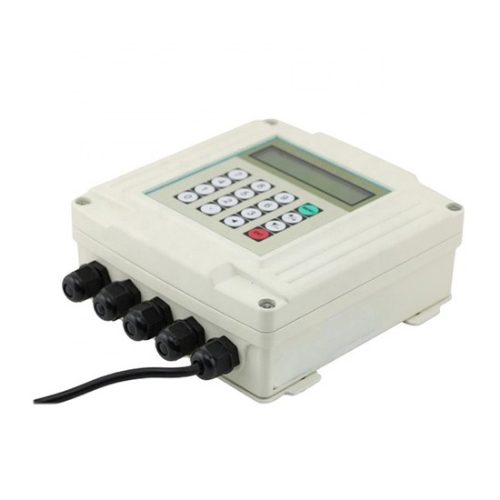

| Principle | Transit-time ultrasonic flowmeter |
| Accuracy | ±1% |
| Signal Output | 1 way 4–20 mA output, electric resistance 0–1 K, accuracy 0.1% (optional) 1 way OCT pulse output (Pulse width 6–1000 ms, default 200 ms) 1 way Relay output |
| Display | 2 x 20-character LCD with backlight, supports Chinese, English, Italian |
| Signal Input | 3 way 4–20 mA input, accuracy 0.1%, acquisition signals such as temperature, pressure, or liquid level Connects to temperature transducer Pt100 for heat/energy measurement |
| Data Interface | Insulated RS485 serial interface, supports software upgrade via computer, MODBUS protocol |
| Special Cable | Twisted-pair cable, generally under 164 ft (50 m); RS485 option allows transmission over 3280 ft (1000 m) |
| Pipe Material | Steel, stainless steel, cast iron, copper, cement pipe, PVC, aluminium, fiberglass, liner allowed |
| Pipe Diameter | DN32 to 6000 mm (1.26 in to 236.22 in) |
| Straight Pipe Requirement | Transducer installation: upstream 10D, downstream 5D, 30D from pump |
| Temperature | -40 to 160 °C (-40 to 320 °F) |
| Weight | 13.2 lb (6 kg) |
| Size/Dimension | 15.7 in x 9.8 in x 6.3 in (40 cm x 25 cm x 16 cm) |
