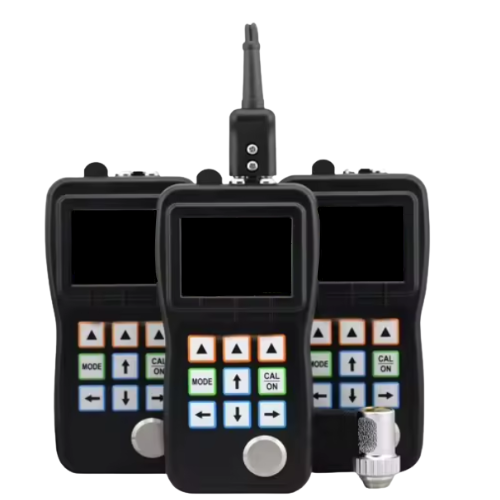

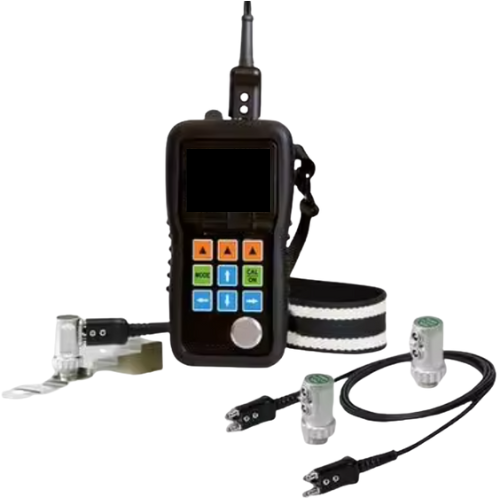

Ultrasonic Coating Thickness Gauge With A/B Scan And Data Logger – Enviro Test Consrtuct

Overview

Enviro Test Consrtuct Ultrasonic Coating Thickness Gauge with A/B Scan & Data Logger is a high-performance device designed for precise measurement of material thickness, even through coatings and paint layers. This product operates on a pulse-echo principle with dual-element transducers, providing highly accurate and reliable readings across a wide measuring range of 0.50 mm to 508 mm. It features a 2.4-inch color OLED display with excellent contrast, ensuring clear visualization of measurements, waveforms, and scan results. This device supports multiple measurement modes, including Normal, Minimum/Maximum capture, DIFF/RR%, A-Scan, and B-Scan, making it versatile for various industrial inspection needs. It offers Echo-Echo mode for thru-coating applications, ensuring accurate base material thickness measurements without removing surface coatings. With selectable measuring resolutions and update rates, users can adapt the device to suit different testing environments.

Features

• High-precision ultrasonic measurement through coatings and paint layers.
• Operates on pulse-echo principle with dual-element transducers.
• Wide measuring range: 0.50 mm to 508 mm, depending on material and probe.
• 4-inch color OLED display with 320 x 240 pixels and 10,000:1 contrast.
• Multiple display modes: Normal, Min/Max capture, DIFF/RR%, A-Scan, B-Scan.
• Echo-Echo mode for accurate thru-coating thickness measurement.
• Selectable resolution (0.01 mm, 0.1 mm) and update rates (4Hz, 8Hz, 16Hz).
• Automatic V-path correction for precise measurements.
• Adjustable gain, blanking, gate, range, delay, and rectification modes.
• Alarm settings with dynamic waveform color change for min/max thresholds.
• Built-in data logger: stores up to 100,000 readings, 1,000 waveforms, 400 files.
• USB 2.0 connectivity and DataView PC software for easy data management.
