Key Features

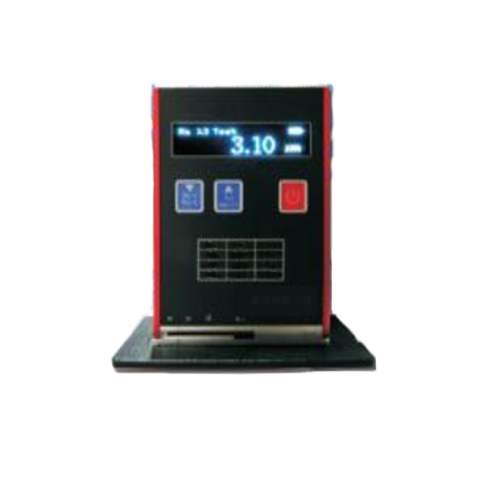

- Pocketsize surface rough meter is a new intelligence instrument which is specialized in measuring
- Gather microprocessor technology and sensor technology all-in-one
- Use advanced microprocessor and optimized high degree integration circuit design
- Constitutes a super miniature system structure that adapts nowadays instrument development It can collect, dispose and display roughness parameter.
- it can have used for outside detection for detection, measurement and commodity inspection department.
- Not only measures encircle, plane, conical surface, but also can measure groove that the length and wide is more than 80*30m.
Technical Specifications
| Measuring range
| Ra:0.0510.0μm; Rz:0.150μm |
| Sampling length | 0.25mm0.8mm2.5mm (0.98in 0.031in 0.098in) |
| Evaluate length | 1.25mm4mm5mm (0.049in 0.15in 0.20 in) |
| Scan length | 6mm (0.23in) |
| Indication error | ≤±15% |
| Variation of indication
| <12% |
| Sensor type
| Piezoelectric crystal |
| Power supply | 3.7V Lithium ion battery |
| Working temperature
| 0ºC – 40ºC (32°F -104°F) |
| Weight | 200g |
| Overall dimension | 106×70×24mm (4.17 x 2.76 x 0.94 in) |
| Standard configuration
| Main body, power adaptor, multirole sample plate (roughness standard block) |
