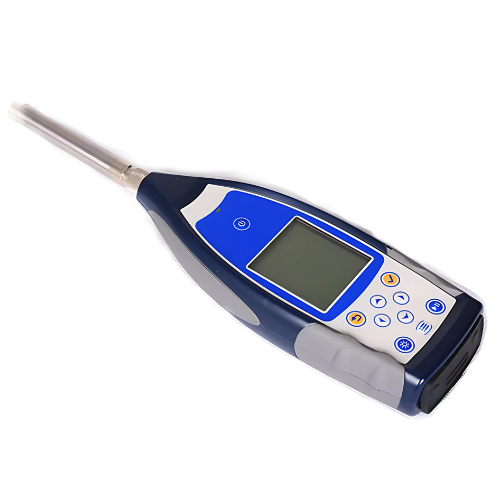

Technical Specifications
| Frequency Response | 10 Hz to 20 kHz; 20 Hz to 12.5 kHz |
| Dynamic Range | 123 dB (13dB (A) to 136 dB(A)); 122 dB (14 dB (A) to 136 dBA) |
| Peak C Range | 47 dB to 139 Db; 50 dB to 139 dB |
| Electrical Input | Maximum input voltage: 5 V rms 7.07 V peak). Input impedance of preamplifier: >6 G |
| Range Setting | Single range to cover whole dynamic range |
| Resolution | 24 Bits |
| Sampling Rate | 48 kHz |
| LCD Display | 16 x 160 LCD with white backlight, 14 step contrast level, 1 s display update rate |
| Size (w x h x d) | 2.76 in × 11.81 in × 1.41 in (70 mm x 300 mm x 36 mm) |
| Weight | Approx. 1.37 lb (620 g), including 4 alkaline batteries |
