Overview

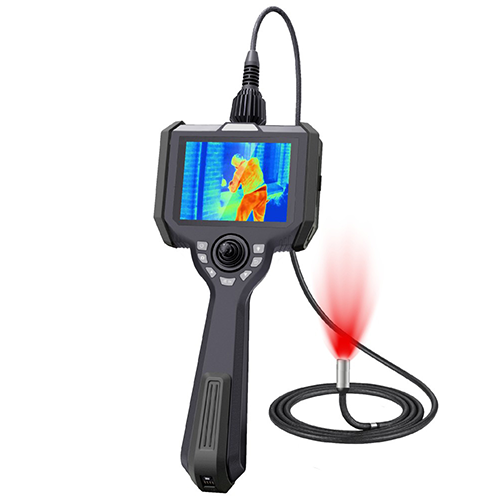

Enviro Test Construct smart inspection camera with modular battery and HD display infrared thermal imaging industrial video scope is a series of products that features a high-definition camera with a million pixels, providing clear and delicate images. The insertion tube is resistant to oil, wear, and is waterproof. It combines industrial endoscope technology with infrared thermal imaging technology to accurately capture abnormal hot spots and precise t t-points. Additionally, it can go under extreme testing environments such as high temperatures, radiation, and toxic gases. It is widely used in industrial and automotive maintenance, covert investigation, search and rescue, customs inspection, security maintenance, and other fields.
Technical Specifications
| Sensor | CMOS |
| Style | Mini camera |
| Video Compression Format | H.265 |
| Data Storage Options | SD Card |
| Application | Outdoor, Indoor |
| Display | 5 inch (12.7 cm) industrial touch LCD screen |
| Support Function | freeze, zoom, photo, flip, video playback, analog ruler functions |
| Lens Size | 0.65 in (1.65 cm) |
| Insertion tube length | 1.09 yards /2.19 yards (1.0 m/2.0 m) |
| Pixels | 1000,000 pixels |
| Degree of protection | Insertion tube (IP67) |
| Power Supply | rechargeable lithium battery pack, online charging, 4 hours |
| Host | |

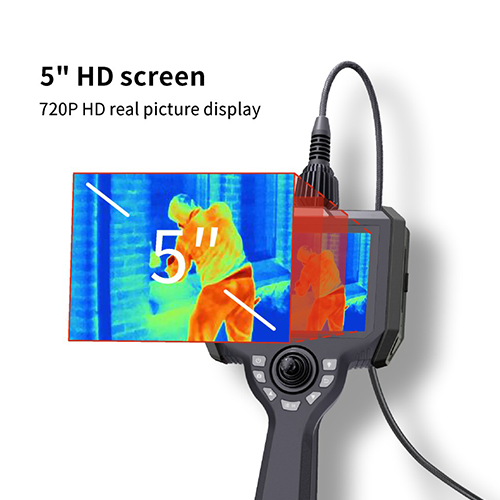

| Host Display | 5″(12.7 cm) HD large screen |
| Output Power | TF card slot, HDMI interface, Micro USB |
| Modular battery | Use ≥ 4 hours |
| IP Grade | IP54 |
| Relative Humidity | Max 90%, No condensation |
| Storage card TF card | 32GB (Other optional) |
| Camera Probe | |

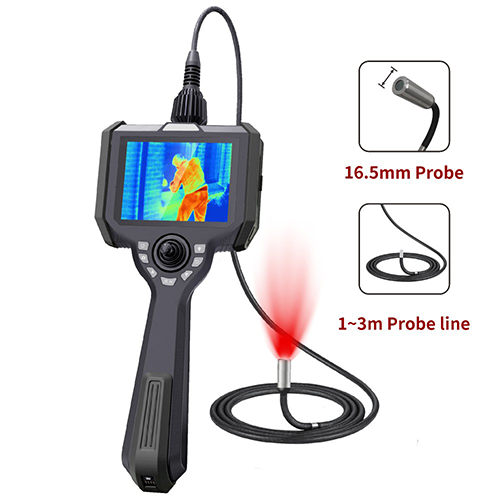

| Camera Diameter | 0.65 in (1.65 cm) |
| Resolution | 160 X 120 |
| Length | 1.09 yards to 3.28 yards (1 m to 3 m) |
| Articulation | 360° full way articulation |
| Max swing head angle | >180° |
| DOF | 0-infinity |
| FOV | 120° |
| Viewing angle | Front view |
| Operating temperature | -4°F to 158°F (-20°C to 70°C) |
| IP Grade | IP67 |
| Temperature measurement range | 68°F to 302°F (20 to 150°C) |
| Temperature measurement function | Center point temperature measurement |
| Temperature measurement accuracy | -20°C to 0℃: ±7°C/0°C to 35°C: ±5°C/35 to 150°C: ±3°C or ±3% |
| Radiation rate | Fixed 0.95 |
| Operating temperature | -4°F to 122°F (-20°C to 50°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Dimension | 13.78 in x 6.10 in x 2.32 in (35 cm x 15.5 cm x 5.9 cm) |
