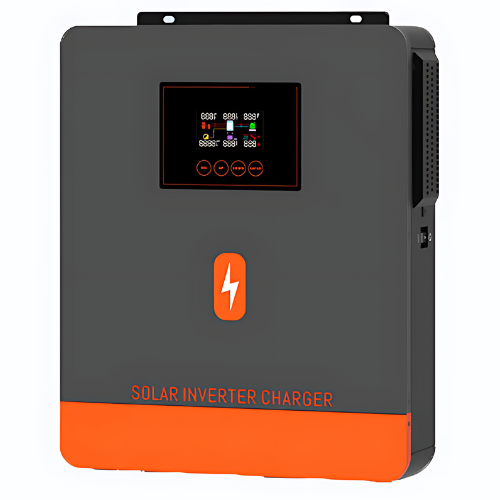

Single Phase3.6 KW 4.2 KW 6.2 KW 24V 48V DC 230VHybrid Solar Inverter With Pure Sine Wave - Enviro Test Construct

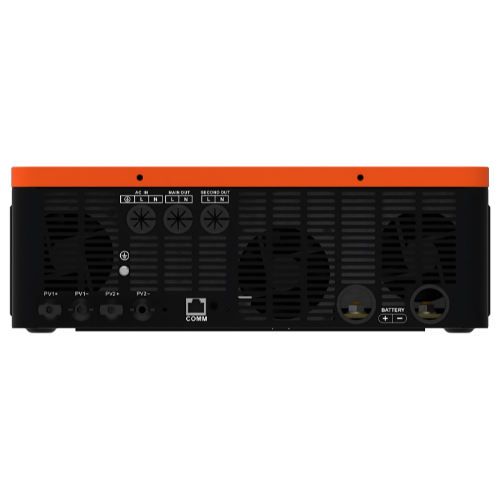

Single Phase3.6 KW 4.2 KW 6.2 KW 24V 48V DC 230VHybrid Solar Inverter With Pure Sine Wave - Enviro Test Construct - Image 2

Single Phase3.6 KW 4.2 KW 6.2 KW 24V 48V DC 230VHybrid Solar Inverter With Pure Sine Wave – Enviro Test Construct

Reliable 3200W power output with pure sine wave, 15.7A nominal output current, and 24V DC input. Supports up to 6200W PV array power with 240V nominal PV voltage.

SKU: ETCI-149 Category:

Technical Specifications

Rated Output Power3200 W
Nominal Output Current15.7 A
Nominal DC Input Voltage24 V
Cold Start Voltage23 V
Max. PV Array Power6200 W
Nominal PV Voltage240 V
Output Voltage WaveformPure Sine Wave
Output Frequency50 Hz
PV Array MPPT Voltage Range90 Vdc to 500 Vdc
Peak Efficiency93 %
Dimension3.9 in x 11.8 in x 17.3 in(10 cm x 30 cm x 44 cm)
Net Weight22 lbs. (10000 g)
