Features

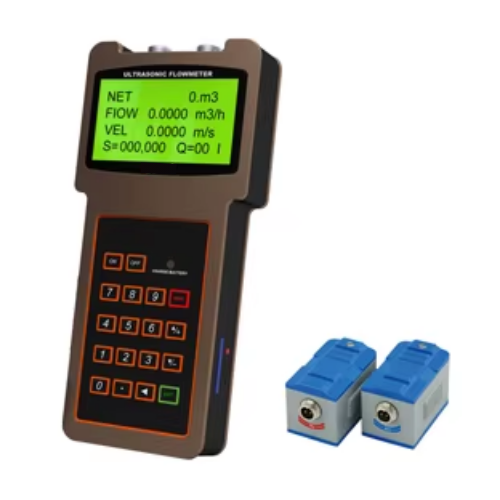

- Handheld ultrasonic flow meter
- Measures water, seawater, and sewage
- Pipe size range: DN25–DN6000
- 0% measurement accuracy
- LCD display with RS232 output
- Battery powered, portable
- Includes sensor, ruler, coupling, and carrying case
- Medium temperature: -30°C to 160°C
Technical Specifications
| Accuracy | ±1%, Linearity 0.5%, Repeatability 0.2% |
| Measuring Range | DN15 to DN6000 |
| Battery | Ni-MH, operates over 12 hours |
| Measurement Type | Non-intrusive clamp-on, no pressure drop |
| Display | Large LCD showing accumulated flow rate, velocity, working status |
| Data Logger | Stores over 2000 lines of measuring data |
