Overview
Enviro Test Construct radar level meter is a continuous and accurate water level monitoring can be achieved, especially the most ideal water level monitoring instrument for non-contact measurement. It has the advantages of easy installation and maintenance, high reliability, non-contact measurement and high compatibility. It is radar water level meter is a kind of equipment that uses microwave pulse to measure water level. A measuring device that transmits and receives radar waves at the speed of light through an antenna and converts running time into water level signals. The equipment is easy to install, high precision, and can meet the needs of users.
Features
- Short wavelength
- Small beam angle
- High accuracy
- High frequency
- High signal to noise ration
Technical Specification
| Measuring medium | liquids (compatible with contact materials) |
| Measuring range | 1.96 ft to 229.65 ft (0.6 m to 70.00 m) |
| Measurement accuracy | ±0.39 in (± 1 cm) |
| Antenna beam angle | 10° |
| Temperature compensation | -31 F to 167 F (-35 ℃ to 75 ℃) |

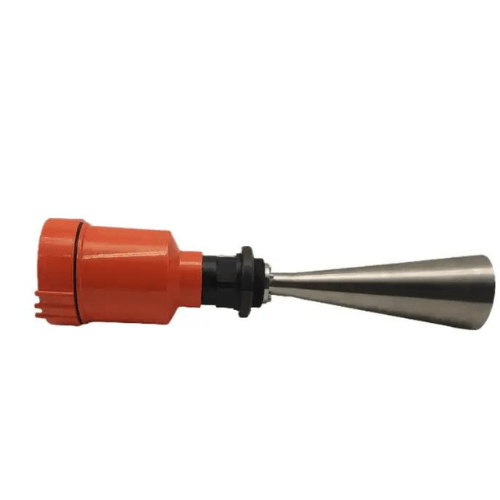

| Antenna type | Stainless steel flare antenna |
| Communication output | RS 485 ,4 mA to 20 mA |
| Housing material | Aluminium alloy |
| Power supply voltage | 9 VDC to 38V DC |
| Protection level | IP 66 or IP 67 |

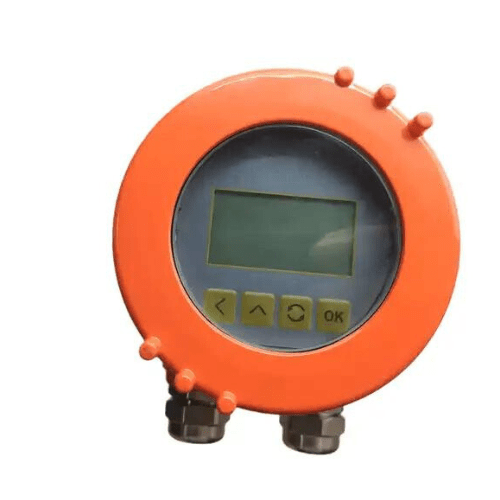

| Display mode | 128 x 64 dot matrix LCD |
| Process pressure | -14.50 psi to 580.151 psi (-100 kPa to 4000 kPa) |
| Product size | 3.83 in x 3.83 in x 19.56 in (97.5 mm x 97.5 mm x 497 mm) |
