Overview

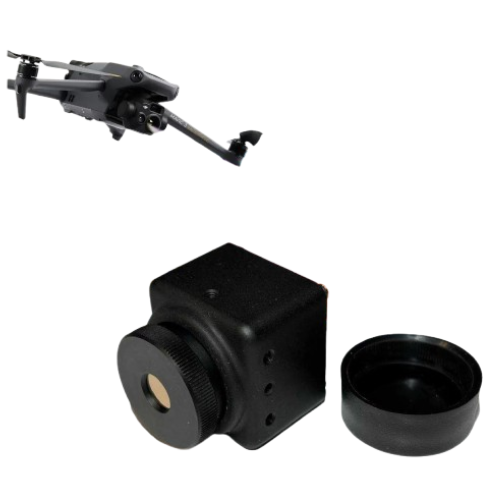

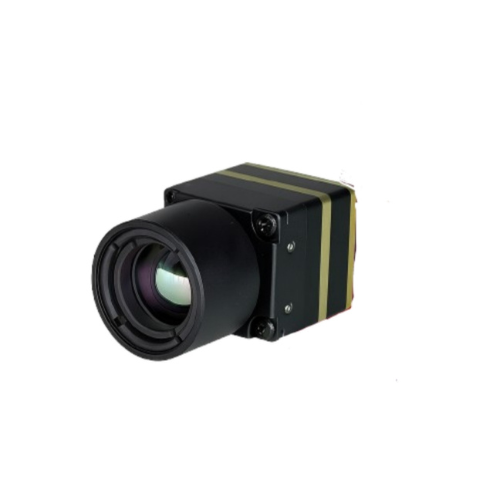

Enviro Test Construct Portable VOx Uncooled Thermal Imager with 256×192 Resolution and Lens Options provides precise temperature monitoring in a compact module. This device uses a VOx uncooled focal plane detector with 12μm pixel pitch and high thermal sensitivity (NETD ≤40mK @25°C) for detailed thermal imaging. It supports multiple lens options including 4.0mm, 6.8mm, and 9.7mm, offering a field of view of 45° × 33° with the standard 4.0mm lens. It outputs video in CVBS analog (PAL) format, consumes minimal power, and is lightweight for portable applications.
Features
- Provides clear infrared imaging at 256×192 pixels with high VOx uncooled detector sensitivity.
- Pixel pitch of 12μm ensures detailed thermal resolution.
- Thermal sensitivity (NETD) ≤40mK @25°C for precise temperature detection.
- Multiple lens options (4.0mm, 6.8mm, 9.7mm) for flexible field-of-view requirements.
- Compact module size of 20mm × 20mm and lightweight design ≤0.81 oz (23g).
- Low power consumption ≤0.8W for energy-efficient operation.
- CVBS analog video output supports real-time thermal monitoring.
Technical Specifications
| Infrared Resolution | 256×192 pixels |
| Detector Type | VOx Uncooled Focal Plane Detector |
| Pixel Pitch | 0.472 mil (12μm) |
| Thermal Sensitivity (NETD) | 0.04°C (40mK) @ 25°C |
| Lens Options | 0.157 in (4.0mm), optional: 0.268 in (6.8mm) / 0.382 in (9.7mm) |
| Field of View (FOV) | 45° × 33° (with 4.0mm lens) |
| Frame Rate | 25Hz |
| Video Output | CVBS Analog Output (PAL) |
| Voltage Input | 5–16V DC |
| Power Consumption | ≤0.8W |
| Module Size | 0.787 × 0.787 in (20 × 20mm) |
| Weight | ≤0.81 oz (23g) |
| Single Gross Weight | 1.10 lb (0.500 kg) |
| Single Package Size | 9.84 × 7.87 × 5.91 in (25 × 20 × 15 cm) |
| Image Output Formats | 10bit / 14bit |
