Features

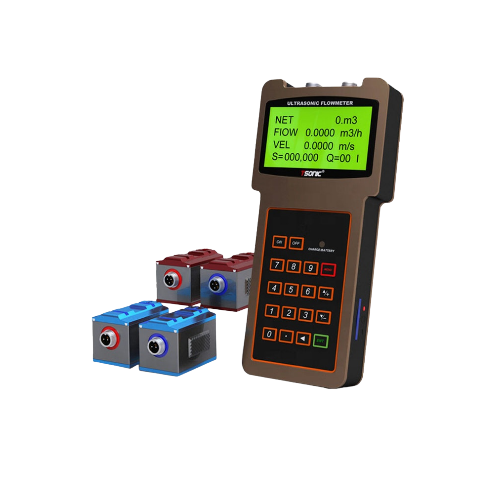

- Handheld and portable clamp-on design for easy installation
- High accuracy: ±1% with excellent repeatability
- Supports 4 to 20mA and pulse signal outputs
- Suitable for various liquids: water, oil, chemicals
- Operates in wide temperature range: -22 to 320 °F (-30 to 160 °C)
- IP67/IP68 protection for harsh industrial environments
- Easy-to-read digital display with backlight
- Ideal for industrial, field, and laboratory applications
Technical Specification
| Parameter | Specification |
| Flow Rate Range | 0 to ±10 m/s, forward or reverse measurement |
| Measurement Accuracy | ±1% |
| Pipe Diameter | DN15 to DN6000 |
| Fluid Types | Water, sea water, sewage, acid and alkali |
| Pipe Material | Steel, stainless steel, cast iron, copper, PVC |
| Communication Interface | Isolated RS485 serial interface, supports MODBUS protocol |
| Data Storage | SD card regularly stores measurement results (optional) |
| Power Supply | DC8 to 36V or AC85 to 264V |
| Signal Output | 1 channel 4 to 20mA current output |
| Signal Input | 3 channels 4 to 20mA current input (optional) |
| Temperature | -22 to 320 °F (-30 to 160 °C) |
| Weight | 3.31 lb (1.5 kg) |
| Size / Dimension | 5.91 in x 3.15 in x 1.97 in (150 mm x 80 mm x 50 mm) |
