Overview

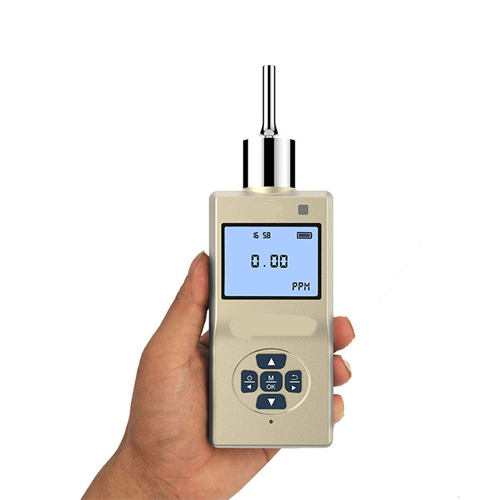

Enviro Test Construct’s portable oxygen gas detector with pump suction and multi-unit display is designed for precise O2 measurement using catalytic combustion, electrochemistry, and infrared absorption principles. This device offers pump suction or dispersive sampling and supports customizable measurement ranges. It features a durable full metal jacket housing, a user-friendly interface with navigation keys, and supports both Chinese and English languages. The detector stores up to 100,000 data groups and uses an intelligent algorithm with multi-point calibration and temperature compensation for accurate results. Powered by a high-capacity lithium-ion battery, it delivers over 20 hours of continuous operation. It also includes an acousto-optic alarm to alert users when gas concentrations exceed safe levels, with IP66 protection for harsh environments.
Features
- Detects oxygen (O2) using catalytic combustion, electrochemistry, and infrared absorption principles
- Sampling method: pump suction or dispersive with stable flow control
- Measurement range customizable, with resolution options of 0.01ppm and 0.1ppm
- Full metal jacket housing with strong wear and corrosion resistance
- User-friendly navigation keys and dual language support (Chinese and English)
- Stores up to 100,000 data groups with intelligent multi-point calibration and temperature compensation
- Built-in 2600mAh lithium battery provides more than 20 hours of continuous operation
Technical Specifications
| Measure Range | 0 to 10, 50 ppm (Optional, other range can be customized) |
| Resolution | 0.01 ppm, 0.1 ppm |
| Accuracy | ± 3 % FS |
| Repeatability | < 3 % |
| Respond Time | T 90 ≤ 30 sec |
| Alarm Method | Sound and light alarm, double color LED lamp, sound or 75 db at 25 cm |
| Working Temperature | – 4 °F to 122 °F (- 20 ℃ to + 50 ℃) |
| Working Humidity | 10 % RH to 95 % RH, No condensation |
| Working Pressure | 86 kPa to 106 kPa |
| Battery | Built-in high-performance lithium-ion batteries, import core: nominal voltage 3.7 V DC, 2500 mah |
| Charger | Travel charger with USB interface, USB power supply DC 5 V, charging temperature range: 32 °F to 104 °F (0 ℃ to 40 ℃) |
| Charging Time | ≤ 6 hours, total charged time 12 hours |
| Continuous Working Time | ≥ 12 hours |
| Dimension | 5.31 in x 2.56 in x 1.38 in (13.5 cm x 6.5 cm x 3.5 cm) |
| Weight | About 1.01 lb (0.46 kg) |
