Overview
Enviro Test Construct portable multi gas detector with the inner pump to detect the gas composite concentration data in different working places. Our engineer design it with 6 sensors at most: one is default of the Temperature & Humidity sensor, so when workers need to inspect the gas concentration, it can detect 5 gas type at most, users can choose 2 gasses, or 3 gas, or 4 gas, according to different usage. The gas composite will be according to the users’ demands.
Technical Specification
| Detection Gas | Combustible gas, Toxic gas, Oxygen, Carbon Dioxide, TVOCgas alarm detector |
| Detecting Range | According to different gas type |
| Resolution | According to different gas type portable CO, LEL, H2S, O2, TVOC gas leak alarm |
| Sampling | Diffusion sampling (Available for connection with external pump) |
| Precision | ≤ ±3% F.S handheld CO, LEL, H2S, O2, TVOC gas transmitter |
| Repeatability | ≤ ±1% CO, LEL, H2S, O2, TVOC gas alarm |
| Zero drift | ≤ ±1% (F.S / year) |
| Sensor Type | Catalytic combustion sensor for Combustible gasElectrochemical sensor for Toxic gas and Oxygen gas NDIR sensor for CO2, CH4, SF6 PID sensor for TVOC gas. |
| Data storage | With the capacity of the 100000 group of measuring data, by the software could be transmitted to the computer |
| Response Time (T90) | ≤ 20s (T 90) |
| Recovery Time | ≤ 20s |
| Pre-heating Time | ≤ 60s |
| Display | LCD dot matrix display |
| Working humidity | 0% RH to 95% RH (non-condensing) |
| Working pressure | -4.35 PSI to 14.50 PSI (-30 kPa to 100 kPa) |
| Explosion-proof Index | Ex ia IIC T4 Ga |
| Protection Grade | IP65 |
| Alarm Mode | Audible, visual, vibration |
| Shell Material | ABS and PC |
| Power Supply | 3.7V, 2000 mAh rechargeable lithium battery, continuous working period can reach to 10 hours or above. |
| Charge Time | ≤ 6 hrs. |
| Working Time | ≥ 24 hrs. |
| Standards | GB15322.1 to 2003, GB3836.1 to 2010, GB3836.2 to 2010, GB3836.4 to 2010 |
| Warranty | 12 months |

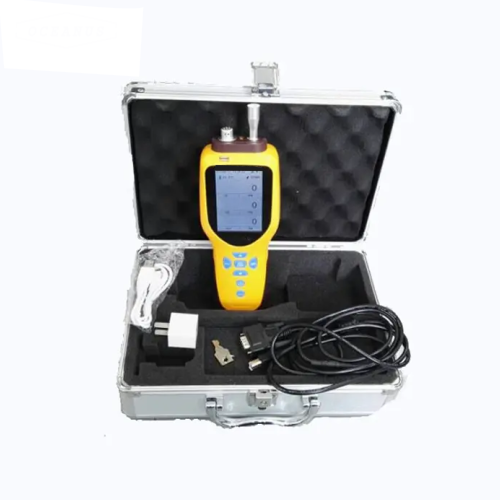

| Accessory | Particle filter, box, instruction, USB charger, data line, calibration cap. |
| Certificate | CNEx, CE, RoHS |
| Working temperature | -22 °F to 140 °F (-30 °C to 60 °C) |
| Dimension | 8.6 in × 3.46 in × 2.16 in (220 mm × 88 mm × 55 mm) |
| Weight | 1.1 lb (500 g) |
