Overview

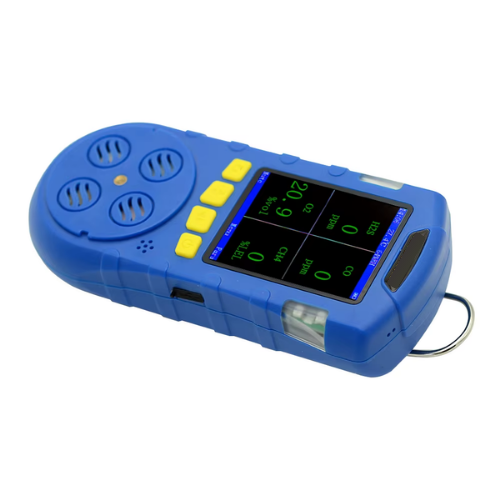

The Enviro Test Construct Portable Multi-Gas Detector ensures safe monitoring of CH4, O2, H2S, CO, and CO2 in industrial environments.Equipped with a high-capacity 5000mAh lithium battery, it supports long hours of operation with reliable performance.Its 2.8-inch TFT color display provides real-time gas readings, temperature, and humidity monitoring.Lightweight at 293 g (0.64 lbs), this device is easy to carry and offers robust data logging for enhanced workplace safety.
Features
- Multi-Gas Detection – Detects toxic and combustible gases simultaneously for enhanced safety.
- Fast Response Time – Provides accurate readings in ≤30 seconds for quick hazard awareness.
- Advanced Detection Principles – Uses electrochemical, infrared absorption, and photoionization sensors for reliable performance.
- Long Battery Life – Rechargeable 3.7V/2000mAh lithium battery supports up to 200+ hours of continuous operation.
- User-Friendly Design – Compact ABS plastic body with 2.0-inch display for easy monitoring.
- Durable and Reliable – Designed to withstand industrial environments with working pressure of 86–106 kPa and IP-rated protection.
- High Environmental Tolerance – Operates in temperatures from -25°C to 55°C (-13°F to 131°F) and up to 95% RH humidity.
- Lightweight and Portable – Weighs only 0.25 kg (0.55 lbs), making it easy to carry on-site.
- Multiple Alarm Modes – Sound and light alarms ensure quick notification of gas hazards.
- OEM/ODM/OBM Support – Customization available for different industrial requirements.
Technical Specifications
| Type | Portable Multi Gas Detector |
| Customized Support | OEM, ODM |
| Detecting Gases | CH4, CO2, O2, H2S, CO, VOCs (optional) |
| Detection Principle | Electrochemical, Infrared, Catalytic Combustion, PID |
| Sensor Type | Electrochemical & Catalytic |
| Accuracy | ≤±3% F.S |
| Response Time | T90 ≤ 30s (except special gases) |
| Sampling Method | Natural Diffusion |
| Alarm Type | Sound, Light, Vibration |
| Alarm Records Storage | 3,000+ records |
| Real-Time Data Storage | 990,000+ records |
| Battery Capacity | 5000mAh Lithium Battery |
| Charging Voltage | DC5V |
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Humidity Range | 10 ~ 95%RH (No condensation) |
| Display | 2.8-inch TFT Color Screen, 240×320 Resolution |
| Usage | C2H4, EX, H2S, O2, CO2 Detection + Temperature & Humidity |

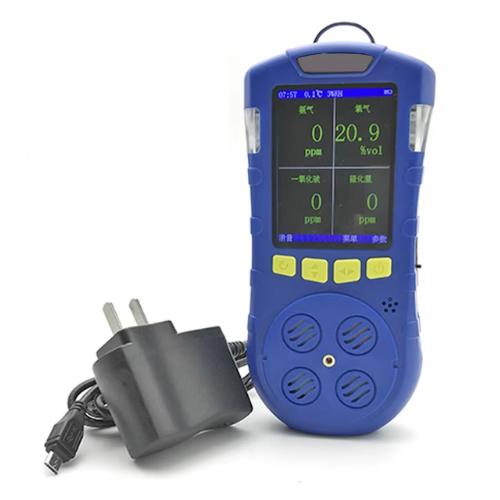

| Standard Accessories | Manual, Certificate, USB Charger, Packing Box, Back Clamp, Calibration Gas Cover |
| Dimensions | 75 × 170 × 47 mm (2.95 × 6.69 × 1.85 in) |
| Weight | 293 g (0.64 lbs) |
