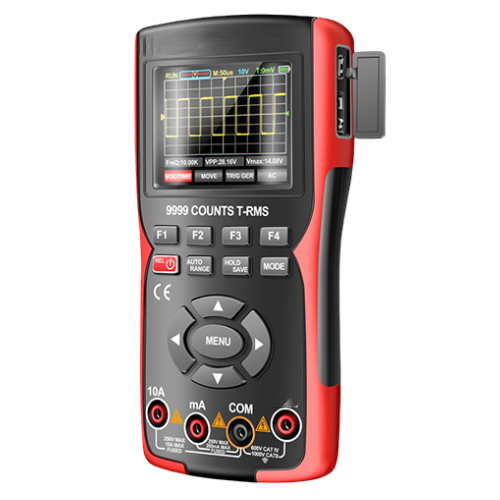

Overview
Enviro Test Construct’s introduces a versatile and portable 2-in-1 oscilloscope multimeter designed for professionals, students, and hobbyists alike. This device is built to simplify testing and measurement with an intuitive interface and compact body, making it highly suitable for on-the-go applications. Its multifunctional design reduces the need for multiple tools, helping users save time and space. The product also supports waveform storage, user customization options, and data export, making it ideal for analysis and reporting.
Features
- Combines two functions in one compact device
- Easy-to-read display for clear measurement visibility
- Portable design for convenient field or lab use
- Built-in storage options to save important data
- Customizable settings for greater flexibility
- Smart brightness adjustment for comfort in any environment
- Auto-shutdown feature helps conserve power
- Long-lasting battery life for extended operation
- Simple controls for quick operation and reduced learning curve
- Data export option for easy sharing and reporting
- Reliable build ensures consistent performance over time
- Suitable for beginners, professionals, and educational use
Technical Specifications
| Display Count | 9999 counts |
| True RMS & Data Hold | Yes |
| Capacitance Range | 9.999 nF to 99.99 mF |
| Frequency Range | 99.99 Hz to 999.9 kHz |
| Data Storage | Waveform storage & formatting |
| Brightness Adjustment | Supported (30%, 50%, 80%, 100%) |
| Auto Shutdown | Customizable (15 min, 30 min, 60 min, 120 min, unlimited) |
| Data Export | Picture export with PC transfer via USB |
| Sampling Rate | 48 M/S |
| Storage Depth | 64 Kpts |
| Temperature Range | -4 °F to 1832 °F (-20 °C to 1000 °C) |
| DC Voltage Range | 999.9 mV to 999.9 V |
| DC Voltage Accuracy | ± (0.5% + 3) |
| AC Voltage Range | 999.9 mV to 750 V |
| AC Voltage Accuracy | ± (1.0% + 3) |
| Resistance Range | 0 to 99.99 mΩ |
| Resistance Accuracy | ± (3.0% + 5) |
| Diode Test | Yes, with continuity beep |
| Fuse Protection | 200 mA 250 V or 10 A 250 V |
| Power Supply | 3.7 V lithium battery |
| Probe Cable Length | 42.1 in (107 cm) |
| Dimensions | 10.63 in x 5.90 in x 2.75 in (27 cm x 15 cm x 7 cm) |
| Weight | 1.32 lb (600 g) |
