Overview

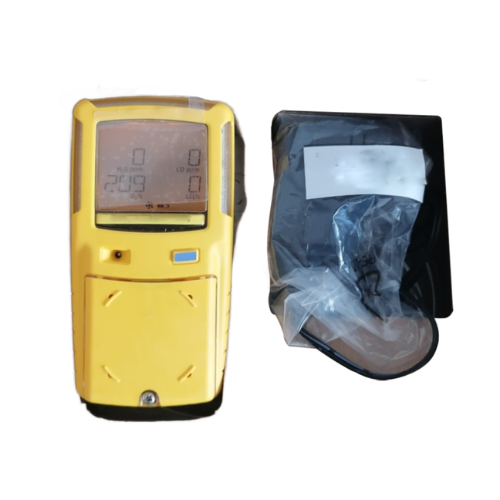

Enviro Test Construct’s Multi-Gas Leak Detector is a reliable, portable multi-gas detector designed to monitor up to four hazardous gases simultaneously. Equipped with latest technology, it provides continuous visual compliance and detector status. Featuring Smart Sample pump technology, it ensures accurate results in confined spaces. Compact, lightweight, and water-resistant, it enhances worker safety and productivity.
Features
- Integrated sampling pump with diaphragm technology.
- IntelliFlash™ for continuous visual compliance confirmation.
- Logs up to 100,000 events with datalogging and event storage.
- LCD continuously shows real-time gas concentration.
- Compact, lightweight, and water-resistant design.
- Bright wide-angled alarm bars and built-in concussion-proof boot.
- Multi-language support (English, French, German, Spanish, Portuguese).
Technical Specifications
| Frequency / Compliance | EMC/EMF Compliant with EMC Directive 2004/108/EC |
| Certification & Approval | Class I, Div 1, Gr A, B, C, D; IECEx: Ex ia IIC T4; ATEX: CE Ex II 1 G Ex ia IIC T4; BR Ex ia IIC T4 |
| Alarm Type | Visual, vibrating, audible (95 dB), Low, High, TWA, STEL, OL (over limit), Low Battery, Pump |
| Alarm Output | Audible/visual alarms on activation, sensors, battery, pump, and circuitry (continuous) |
| Sensor Specifications | H₂S: 0–200 ppm (resolution 1 ppm); CO: 0–1000 ppm (resolution 1 ppm); O₂: 0–30% vol (resolution 0.1% vol); Combustibles: 0–100% LEL (resolution 1% LEL) |
| Pump Draw | Up to 75 ft / 23 m |
| Battery Life | 13 hrs at +32°F / 0°C; 8 hrs at -4°F / -20°C |
| Charging | Recharges in 6 hrs |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Humidity Range | 10–100% RH (non-condensing) |
| Ingress Protection | IP66/67 – Dustproof, water-resistant |
| Size (mm) | 131 × 70 × 52 mm |
| Size (inches) | 5.1 × 2.8 × 2.0 in |
| Weight (g/lb) | 328 g / 0.72 lb |
