Overview

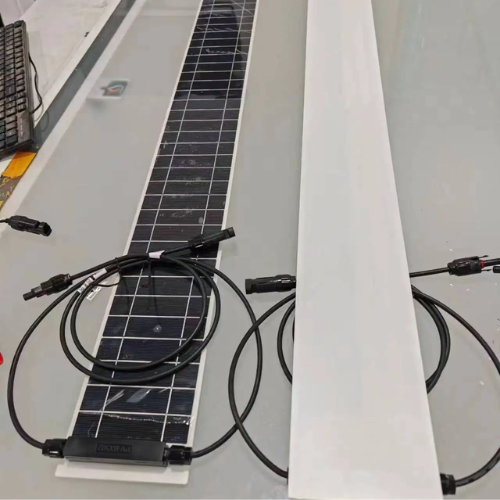

Enviro Test Construct light weight easy carry 5 W to 120 W customized mono semi flexible solar panels pv cell for solar system. Monocrystalline silicon Semi-flexible Solar Panels. Monocrystalline silicon Semi-flexible Solar Panels have high conversion efficiency, light weight and 30 to 40 degrees bending. They are durable after high temperature lamination. The output of 6 V, 9 V, 18 V and 36 V can charge 3.7 V, 12 V or 24 V rechargeable batteries. It can be customized to any size and color.
Features
- The efficiency of Monocrystalline solar panel is up to 20.5 %, so it can capture more than conventional solar panels which is 15 % or even more.
- It thickens only 3mm, easy to your yacht, boat or RV roof, or fixed on your caravans, motorhomes, bicycle and other vehicles for outdoor use.
- IP65 and IP67 Waterproof Connection box.
- Holes in the corner with Stainless grommets, ease-of-installation.

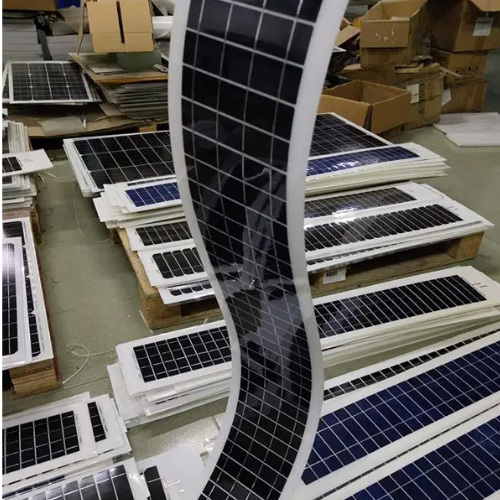

- Bending angle up to 0-60° degrees. Adopting transparent ETFE/PET material on surface and high quality TPT back plate. Resist salt, corrosion ,UV, withstands hail, storm and other harsh weather.
Technical specifications
| Panel Efficiency | 5 w, 10 w, 20 w, 30 w, 50 w, 80 w, 90 w, 100 w and 120 w |
| VOC | 21.6 V |
| ISC | 0.60 A |
| IMP | 0.555 A |
| VMP | 18.0 V |
| Single Gross Weight | 0.62 lb. (280 g) |
| Cell Size | 4.92 in x 4.92 in (125 mm x 125 mm) |
