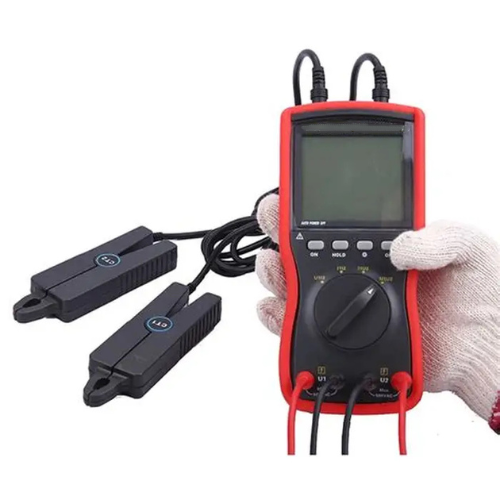

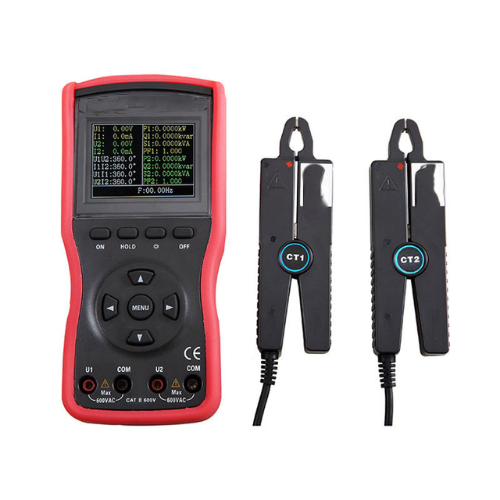

Name: Intelligent Double Clamp Digital Phase Voltammeter with Data Storage and USB Interface - Enviro Test Construct -
SKU: ETCWCM-117

Features

Technical Specifications

Voltage Range (AC)	0.00 V to 600 V
Voltage Resolution	0.01 V
Voltage Accuracy	± 0.5% range
Current Range (AC)	0.0 mA to 20.0 A
Current Resolution	0.1 mA
Current Accuracy	± 0.5% range
Phase Range	0.0° to 360.0°
Phase Resolution	0.1°
Phase Accuracy	± 1°
Frequency Range	45.00 Hz to 65.00 Hz
Frequency Resolution	0.01 Hz
Frequency Accuracy	± 1.0% range
Active Power Range	0.0 W to 12 kW
Active Power Resolution	0.1 W
Active Power Accuracy	± 1.0% range
Reactive Power Range	0.0 var to 12 kvar
Reactive Power Resolution	0.1 var
Reactive Power Accuracy	± 1.0% range
Apparent Power Range	0.0 VA to 12 kVA
Apparent Power Resolution	0.1 VA
Apparent Power Accuracy	± 1.0% range
Power Factor Range	-1.000 to +1.000
Power Factor Resolution	0.001
Power Factor Accuracy	± 0.03
Power Supply	DC 9 V alkaline batteries (6 x AA LR6)
Detection Rate	About 2 seconds per measurement
CT Clamp Size	0.31 in (8 mm)
Test Wire Length	4.92 ft (1.5 m)
Current Clamp Wire Length	6.56 ft (2 m), diameter 0.16 in (4 mm)
Input Impedance	1 MΩ
Working Current	Max 135 mA (backlight on), battery lasts 6 hours
	90 mA (backlight off), battery lasts 9 hours
Display	2.8-inch TFT color LCD, display field 2.28 in x 1.73 in (58 mm x 44 mm)
Data Storage	1200 groups
Auto Shut Down	After 15 minutes of inactivity
Low Battery Indication	Displays when voltage < 7.2 V
Operating Temperature	32 °F to 104 °F (0 °C to 40 °C)
Dimensions	7.72 in x 3.62 in x 2.13 in (196 mm x 92 mm x 54 mm)
Weight	About 5.20 lb (2.36 kg) including accessories
