Industrial Endoscope with Variable LED Lighting for Dark Inspections – Enviro Test Construct

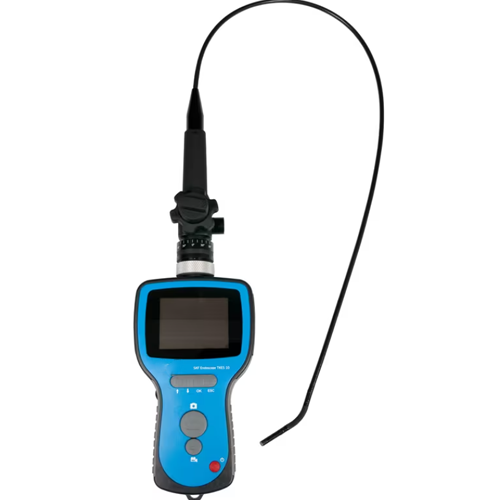

High-performance TKES 10 series industrial endoscopes (TKES10F, TKES10S, TKES10A) with flexible, semi-rigid, or articulating tubes. Features video function, variable LED lighting, and compact 3.5” display for efficient machinery inspections.

SKU: ETCTIE-027 Category:

Features

  • Compact 3.5” backlit display with video and image capture
  • High-resolution CMOS image sensor with up to 2x digital zoom
  • Variable LED lighting for inspections in dark environments
  • Choice of flexible, semi-rigid, or articulating insertion tubes
  • Small 5.8 mm tip diameter for easy access in narrow spaces
  • Stores up to 50,000 images or 120 minutes of video
  • Side view adapter included for pipe and wall inspections
  • Sturdy carrying case with charger, cables, and cleaning kit
  • Hands-free use with tripod mount and built-in magnets
  • IP67-rated insertion tubes for durability in harsh conditions



Technical Specifications

Specification Details
Tube Type Flexible
Image Sensor CMOS
Resolution (Still) 640 × 480 pixels
Resolution (Video) 320 × 240 pixels
Tip Diameter 5.8 mm (0.23 in.)
Tube Length 1 m (39.4 in.)
Field of View 67°
Depth of Field 1.5 – 6 cm (0.6 – 2.4 in.)
Light Source 4 white adjustable LEDs (0–275 Lux/4 cm)
Probe Temperature –20 to +60 °C (–4 to +140 °F)
Ingress Protection IP67
Case Dimensions 360 × 110 × 260 mm (14.2 × 4.3 × 10.2 in.)
