Overview

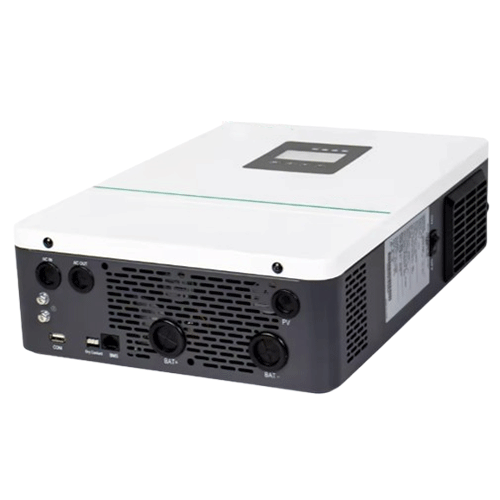

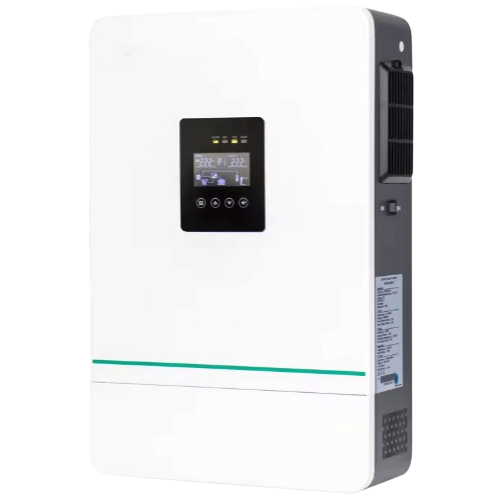

Enviro Test Construct Hybrid On/Off Grid Solar Inverter Pure Sine Wave – This device is a versatile hybrid solar inverter designed for both on-grid and off-grid applications. It supports 48V battery systems and provides stable single-phase or three-phase output. This product features intelligent MPPT tracking, high charging efficiency, and pure sine wave output for reliable performance. It also includes adaptive charging methods, multiple parallel unit support, and smart cooling to ensure safe and efficient operation in various environmental conditions.
Features
- Supports 3.6KW to 10KW power output for residential and commercial use
- Pure sine wave output for stable and clean electricity
- Compatible with 48V lead-acid and lithium batteries
- Intelligent MPPT solar charging for maximum efficiency
- On-grid and off-grid operation with automatic switching
- Parallel up to 9 units for expanded power capacity
- Operating temperature range: -10℃ to 50℃ (-14°F to 122°F)
- Intelligent air cooling system with low noise (<60 dB)
- IP21 protection level for safe indoor installation
- Easy communication via RS485/USB for monitoring and control
Technical Specifications
| Inverter Output | Multiple outputs up to 49,500 W with single or three-phase options |
| Maximum Output Power | 3,600 W to 49,500 W (parallel expansion) |
| Maximum Output Voltage | 240 V to 415 V AC |
| Maximum Output Current | 15.7A to 215A |
| Maximum Output Frequency | 50 Hz to 60Hz |
| Output Waveform | Sine Wave |
| Output Topology | L+N+PE or L1+N1+L2+N2+PE |
| Maximum Parallel Units | 9 units |
| Battery Type | Lead-acid or Lithium Battery |
| Rated Battery Voltage | 24 V to 48 V DC |
| Maximum PV Hybrid Charging Current | 80 A to 100 A |
| Charging Method | Two-way to Three-way to Auto Setting |
| MPPT Channels | 1 or 1 per unit, 9 channels for 9 units |
| Maximum Input Power | 5,000 W to 6,000 W per channel |
| Maximum Open Circuit Voltage | 500 V DC |
| Maximum Input Short Circuit Current | 18 A to 20 A |
| Input Open Circuit Voltage Range | 40 V to 450 V DC or 120 V to 450 V DC |
| Maximum PV Charging Efficiency | 99.5 % |
| Mains / Generator Input | Standard AC input compatible |
| Cooling Method | Intelligent Air Cooling |
| Humidity | 5% to 95% |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Net Weight | 14.25 lb to 18.48 lb (6.46kg to 8.40kg) |
| Dimensions | 16.54 in x 11.73 in x 4.17 in to 18.03 in x 12.05 in x 4.51 in (420298106 mm to 458306114.5 mm) |
