Overview

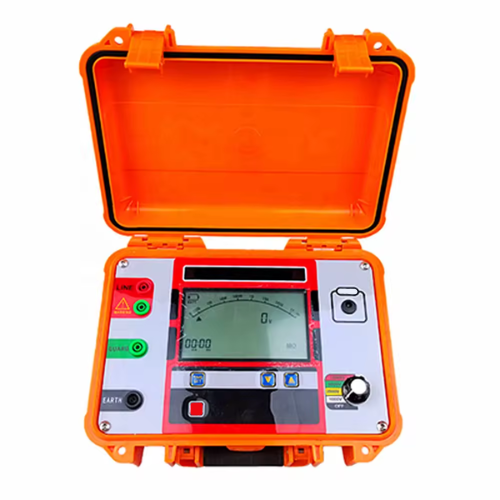

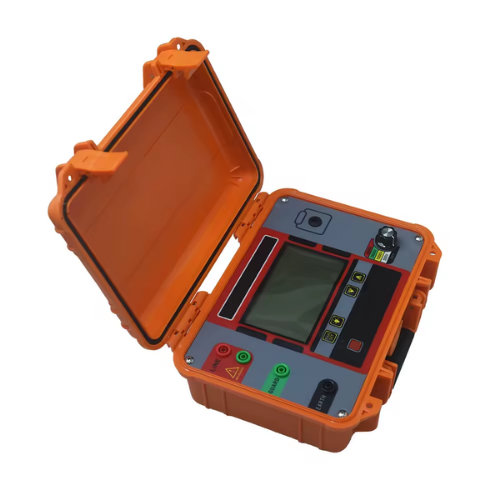

Enviro Test Construct’s high voltage digital insulation resistance ohmmeter with 10 kV output is a precision device designed to measure insulation resistance from 1 MΩ to 1 TΩ with selectable test voltages of 1000 V, 2500 V, 5000 V, and 10,000 V. It features a large color LCD for easy data visualization, a built-in rechargeable lithium battery for field applications, and automated testing for insulation resistance, absorption ratio, and polarization index. Its rugged, dustproof, and moisture-resistant design ensures reliability in challenging environments, making it ideal for power utilities, industrial equipment maintenance, and high-voltage diagnostic testing.
Features
- High output voltage up to 10 kV for advanced insulation testing
- Wide resistance measurement ranges from 1 MΩ to 1 TΩ
- Built-in rechargeable lithium battery for portable use
- Large color LCD for clear data visualization
- Strong load capacity with short-circuit current over 1 mA
- Supports automatic insulation, absorption, and polarization tests
- Shockproof, dustproof, and moisture-resistant design
- Simple user interface with menu-based navigation
Technical Specifications
| Measuring Range | 1 MΩ to 1 TΩ |
| Output Voltage | 1000 V, 2500 V, 5000 V, 10000 V |
| Accuracy Below 100 GΩ | ± (5% RD + 0.1% FS) |
| Accuracy Above 100 GΩ | ± (10% RD + 0.1% FS) |
| Minimum Resolution | 1 KΩ |
| Output Short-Circuit Current | > 1 mA |
| Power Supply | Built-in 12.6 V, 2.2 Ah lithium battery |
| Display Type | Large color LCD screen |
| Operating Voltage Input | 110 V to 240 V |
| Operating Temperature Range | 32 °F to 104 °F (0 °C to 40 °C) |
| Dimensions | 11.81 in x 7.87 in x 5.91 in (300 mm x 200 mm x 150 mm) |
| Weight | 8.82 lb (4 kg) |
