Overview

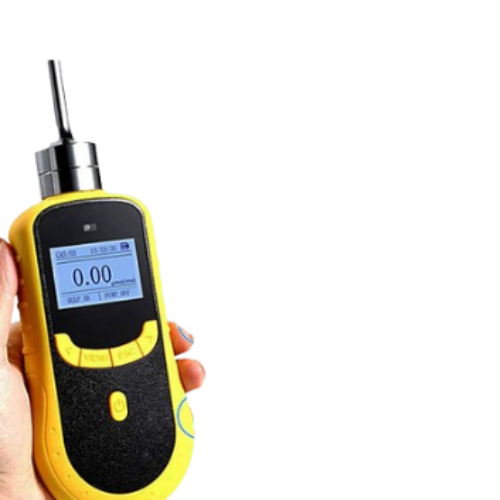

Stay safe with our High-Quality H₂S Gas Detector (100 ppm) featuring a built-in pump, high-precision sensor, and fast ≤10s response. Designed for industrial safety, oil & gas, mining, and confined spaces, it delivers accurate detection with visual, sound, and vibration alarms. Compact, rechargeable, and reliable for maximum protection.
Features
- High-precision detection with an imported electrochemical sensor
- Multiple ranges available: 0–50 ppm, 0–100 ppm, 0–200 ppm
- Ultra-fine resolution: 0.01 ppm / 0.1 ppm for accurate readings
- Fast response time ≤10s for instant hazard alerts
- Triple alarm system – visual, sound, and vibration for safety
- Built-in pump ensures reliable and efficient gas sampling
- Rechargeable battery for long-lasting, portable use
- Durable design for industrial safety, oil & gas, mining, and confined spaces
- Multiple gas units supported for flexible measurement
- Reliable performance with ±2% FS precision and ≤±1% repeatability
Technical Specifications
| Type | Gas Detector |
| Gas Detected | Hydrogen Sulfide (H₂S) |
| Detection Principle | Electrochemical |
| Measuring Range | 0–50 ppm, 0–100 ppm, 0–200 ppm |
| Resolution | 0.01 ppm / 0.1 ppm |
| Precision / Accuracy | ±2% FS |
| Repeatability | ≤ ±1% |
| Response Time (T90) | ≤ 10 seconds |
| Recovery Time | ≤ 30 seconds |
| Sensor | Imported high-precision electrochemical sensor |
| Sensor Lifetime | 2–3 years typical (depending on usage) |
| Cross-Sensitivity | Minimal interference from CO, SO₂, NH₃, VOCs |
| Alarm Modes | Visual (LED), Audible (≥90 dB), Vibration |
| Alarm Thresholds | Configurable (default: Low / High) |
| Gas Units Supported | ppm, mg/m³, %LEL, others |
| Data Logging | Optional, up to 30 days of readings |
| Communication / Interface | Optional Bluetooth / USB / Wireless for PC or mobile connection |
| Power Supply | Rechargeable Li-ion Battery, 3.7V |
| Battery Life | 12–20 hours continuous operation |
| Charging Time | 4–6 hours |
| Display | LED indicators for power, alarm, and fault |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Operating Humidity | <95% RH, non-condensing |
| Operating Pressure | 86–106 kPa |
| Enclosure / Protection | ABS + PC, rugged, IP65 dust and water-resistant |
| Dimensions | 120 × 60 × 30 mm (approx.) |
| Weight | ~200 g |
| Calibration | Manual or automatic calibration options |
| Mounting Options | Handheld, belt clip, or wall-mounted |
| Usage Scenarios | Industrial safety, chemical plants, oil & gas, mining, confined spaces, laboratories |
| Optional Features | Multi-gas detection, real-time monitoring via mobile app, alarm event history |
