Overview

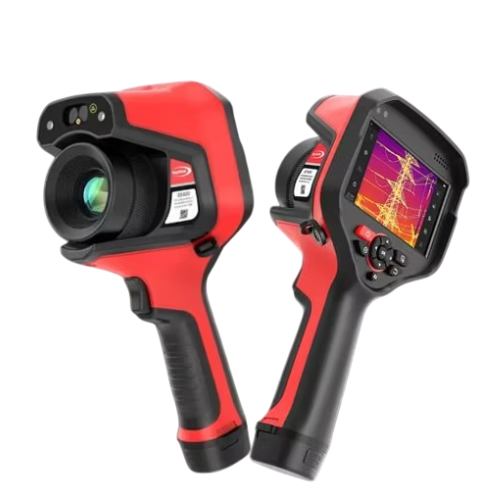

Enviro Test Construct High-Precision Infrared Thermal Imager with OLED Display delivers accurate temperature measurement and detailed imaging with a 5-inch touch screen. It features high-resolution infrared and visible light imaging, adjustable measurement ranges, and fast frame rates, making it ideal for industrial inspection, maintenance, and scientific research.
Features
- Infrared resolution 480×360 with 12μm pixel size and super resolution 960×720
- Spectral band: 7.5–14μm, NETD <35 mK
- Frame rate: 25 Hz for real-time imaging
- Measurement accuracy: ±3.6°F (±2°C)
- 5-inch OLED touch screen with 1280×720 resolution
- 13-megapixel visible light camera
- Digital zoom 1×–10×
- Video recording: 1280×720
- Operating humidity: 10–95% RH
Technical Specifications
| Infrared Resolution | 480×360 @ 12μm |
| Super Resolution | 960×720 |
| Spectral Band | 7.5–14 μm |
| NETD | <35 mK @ 25°C, F1.0 |
| Frame Rate | 25 Hz |
| Display | 5-inch OLED touch screen, 1280×720 |
| Visible Light Camera | 13 MP |
| Digital Zoom | 1×–10× |
| Video Resolution | 1280×720 |
| Operating Humidity | 10–95% RH |
| Storage Temperature | -40–158 °F (-40–70 °C) |
| Measurement Range | -4–302 °F, 212–1202 °F; optional 752–2732 °F (-20–150 °C, 100–650 °C; optional 400–1500 °C) |
| Measurement Accuracy | ±3.6 °F (±2 °C) |
| Operating Temperature | -4–131 °F (-20–55 °C) |
