Overview

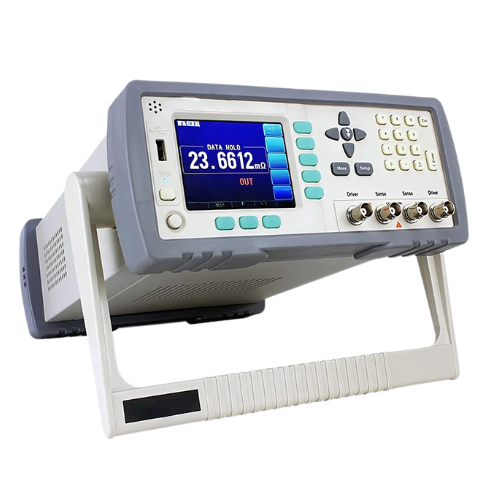

Enviro Test Construct’s high precision dc micro ohmmeter with auto calibration and wide measuring range is a newly designed resistance meter that delivers high accuracy and stability with ARM microprocessor control. It features a 3.5-inch true color LCD with dual-language interface and easy operation. This device is ideal for measuring switch and connector contact resistance, relay and transformer resistance, motor and inductor resistance, welding joints, circuit lines, and various metallic connection resistances across industries including automotive, aerospace, and electronics.
Features
- High precision DC micro-ohmmeter with ARM processor control
- Wide measuring ranges from 0.1 μΩ to 10 kΩ with high resolution
- Automatic calibration for improved accuracy and stability
- 5 in true-color LCD display with Chinese and English interface
- RS-232C interface for data communication and remote operation
- Suitable for measuring contact, winding, welding, and circuit resistances
- Rugged design for industrial applications in automotive, aerospace, and electronics
Technical Specifications
| Measuring Range | 1 µΩ to 20 MΩ |
| Accuracy | 0.05% |
| Display | 3.5 in true color LCD with Chinese and English interface |
| Control System | High-performance 32-bit ARM microprocessor |
| Interface | RS-232C |
| Power Supply | 198 V to 240 V AC, 50 Hz |
| Operating Temperature Range | 32 °F to 176 °F (0 °C to 80 °C) |
| Dimensions | 13 in x 15.7 in x 11 in (33 cm x 40 cm x 28 cm) |
| Product Weight | 33 lb (15 kg) |
