Features

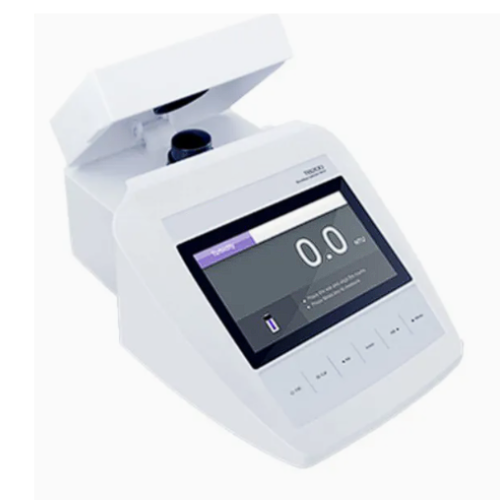

- Multiparameter benchtop turbidimeter with a 4.5-inch TFT display.
- Calibration with 2 to 7 points using Formazan standards.
- Four selectable turbidity units: NTU, FNU, EBC, and ASBC.
- TSS conversion factor for accurate measurement of total suspended solids.
- Auto-read function senses and locks in a stable reading.
- Setup menu for adjusting date and time, measurement mode, resolution, auto-power off, and more.
- Password protection to prevent unauthorized calibration and setting changes.
- Expanded memory stores and recalls up to 200 data sets.
- Reset function restores all settings to factory defaults.
- USB communication interface for easy data transfer to a PC.
Technical Specifications
Turbidity – Measuring Range | 0 to 2000 NTU / 0 to 500 EBC / 0 to 9999 ASBC |
Minimum Resolution (NTU) | 0.01, 0.1, 1 (automatic) |
Accuracy | ±2% of reading (0–500 NTU), ±3% of reading (501–2000 NTU) |
Calibration | 2 to 7 points |
Calibration Standard | 0.02 / 10 / 200 / 500 / 1000 / 1500 / 2000 NTU |
TSS – Range | Depending on the TSS conversion factor |
TSS – Resolution | 0.1 / 1 |
TSS – Accuracy | ±3% of reading |
Light Source | Infrared-emitting diode, wavelength 850 nm |
Detector | Silicon photodiode |
Stray Light | < 0.02 NTU |
Sample Vial | 60 × 25 mm (Ø) |
Sample Volume | 20 ml |
Auto-Power Off | 2 hours after last key pressed |
Memory | Stores up to 200 data sets |
Output | USB communication interface |
Display | 4.5-inch TFT LCD |
Power Supply | 12 V DC power adapter |
Size (W×D×H) | 9.84 × 6.97 × 3.78 in (250 × 177 × 96 mm) |
Net Weight / Gross Weight | 1.2 kg / 1.5 kg |
