Overview

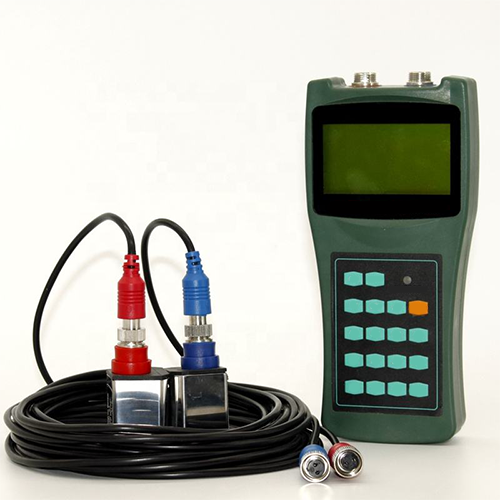

Enviro Test Construct -Handheld Ultrasonic Flow Meter with RS232 Data Logger is a portable, clamp-on instrument designed for accurate measurement of liquid flow in closed pipes. Using advanced ultrasonic transit-time technology, it provides reliable readings for water, oil, and other conductive or non-conductive liquids without requiring pipe modification. The built-in RS232 data logger allows convenient recording and transfer of flow measurements, making it ideal for field testing, on-site inspections, and long-term monitoring.
Features
- Clamp-on ultrasonic sensors for non-intrusive flow measurement
- Wide flow rate measuring range: 1.6 ft/s to 49.2 ft/s (0.5 m/s to 15 m/s)
- Accuracy: ±1% reading
- Suitable for liquids including water, oil, and various industrial fluids
- Lightweight, compact handheld design for field use
- Data logging via RS232 for real-time analysis and recording
- Durable aluminum alloy housing
Technical Specifications
| Specification | Details |
| Type | Portable Ultrasonic Flow Meter |
| Measurement Principle | Transit-time ultrasonic |
| Flow Rate Range | 1.6 ft/s to 49.2 ft/s (0.5 m/s to 15 m/s) |
| Accuracy | ±1% |
| Mediums | Water, oil, and other liquids |
| Material | Aluminum Alloy |
| Connectivity | RS232 Data Logger, Clamp-on |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Dimensions | 8.19 in × 3.70 in × 1.10 in (208 mm × 94 mm × 28 mm) |
