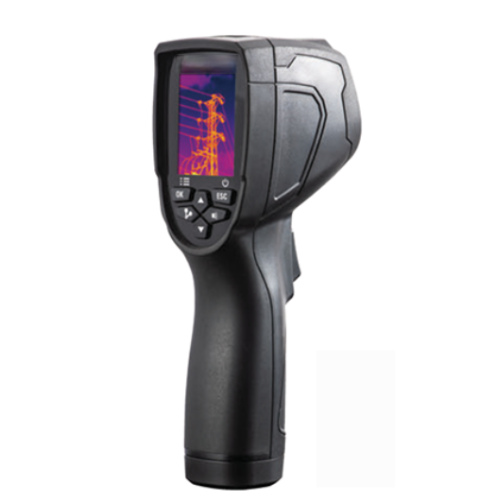

Features
- 240×320 2.8″ LCD display
- Auto Fusion mode (AUF)
- 400°C temperature range
- Non-contact temperature measurement
- Intelligent Face capture (979Y)
- 37.3°C high temperature automatic alarm prompt (979Y)
- 2M visible light digital camera
- Built-in 400 nm cut off or 420 nm cut off or 460 nm cut off
- IP54
Technical Specifications
Note: * Means the Parameter is the same for the model.
| Parameters | Details | |||||||||
| Imaging and optical data | ||||||||||
| ETCIIT-160-A | ETCIIT-160-B | ETCIIT-160-C | ETCIIT-160-D | ETCIIT-160-E | ETCIIT-160-F | ETCIIT-160-G | ETCIIT-160-H | ETCIIT-160-I | ||
| Field of View | 21x 21◦ | 41.5x 31.1◦ | 50x 38◦ | 32x 24◦ | 50x 38◦ | 50x 38◦ | 42x 32◦ | 25.6x 15.6 | 50×38 | 31×23 |
| Spatial Resolution | 4.53mrad | 1.89 m rad | 5.4 m rad | */3.3 m rad | 7.3 m rad | 7.3 m rad | 2.6 m rad | 2.26 m rad | 7.3 m rad | 3.33 m rad |
| NETD | <0.1◦C@30◦C (80◦F)/100mK | * | * | * | * | * | * | * | * | * |
| Image Frequency | 50Hz | 50Hz | 25Hz | 50Hz | 25Hz | 25Hz | 25Hz | * | 25Hz | * |
| Focus Mode | Focus free | * | * | * | * | * | * | * | * | * |
| Focal Plane Array (FPA) Spectral Range | Uncooled microbolometer/8-14um | * | * | * | * | * | * | * | * | * |
| IR Resolution | 384x 288 | 256x 192 | 160x 120 | 120×90 | 96×96 | 160x 120 | 120x 120 | 120x 90 | 160x 120 | |
| Image Presentation | ||||||||||
| Display | 2.8″ TFT LCD, 240×320 pixels | *
| *
| *
| *
| *
| *
| *
| *
| *
|
| Color Palettes | IRON, Rainbow, Grey, GreyInverted, Brown, Blue-red, hot-cold, Feather | *
| *
| *
| *
| *
| *
| *
| *
| *
|
| Measurement | ||||||||||
| Object Temperature Range | -20◦ C to 400◦ C (-4◦ F to 752◦ F) | *
| *
| *
| *
| *
| *
| *
| *
| *
|
| Accuracy | ±2◦ C (±3.6◦ F) or ±2% of reading | *
| *
| *
| *
| *
| *
| *
| *
| *
|
| Measurement Analysis | ||||||||||
| Spot meter | Center Spot | *
| *
| *
| *
| *
| *
| *
| *
| *
|
| Automatic Hot/Cold Detection | Auto hot or cold markers | *
| *
| *
| *
| *
| *
| *
| *
| *
|
| Emissivity Correction | 8 pre-define level and Variable from 0.01 to 1.0 | *
| *
| *
| *
| *
| *
| *
| *
| *
|
| Storage media | 4Gbytes eMMC or 8GB SD card | *
| *
| *
| *
| *
| *
| *
| *
| *
|
| Video storage format | Standard MPEG-4, 640×480@30fps, on memory card > 60 minutes | *
| *
| *
| *
| *
| *
| *
| *
| *
|
| Image storage format | Standard JPEG, including measurement data, on memory card > 1000 pictures | *
| *
| *
| *
| *
| *
| *
| *
| *
|
| Storage mode | IR/visual images; simultaneous storage of IR and visual images | *
| *
| *
| *
| *
| *
| *
| *
| *
|
| Power System | ||||||||||
| Battery | Li-ion battery, 4 hours operating time | *
| *
| *
| *
| *
| *
| *
| *
| *
|
| Input Voltage | DC 5V | *
| *
| *
| *
| *
| *
| *
| *
| *
|
| Charging System | In camera (AC adapter) | *
| *
| *
| *
| *
| *
| *
| *
| *
|
| Power Management | Automatic shutdown | *
| *
| *
| *
| *
| *
| *
| *
| *
|
| Environmental Data | ||||||||||
| Operating Temperature Range | -20◦ C to 50◦ C (-4◦ F to 122◦ F) | *
| *
| *
| *
| *
| *
| *
| *
| *
|
| Storage Temperature Range | -40◦ C to 70◦ C (-40◦ F to 158◦ F) | *
| *
| *
| *
| *
| *
| *
| *
| *
|
| Humidity (operating and storage) | 10% to 90% | *
| *
| *
| *
| *
| *
| *
| *
| *
|
| Drop test/ Digitl camer | 2m/ 2M pixel | *
| *
| *
| *
| *
| *
| *
| *
| *
|
