Overview

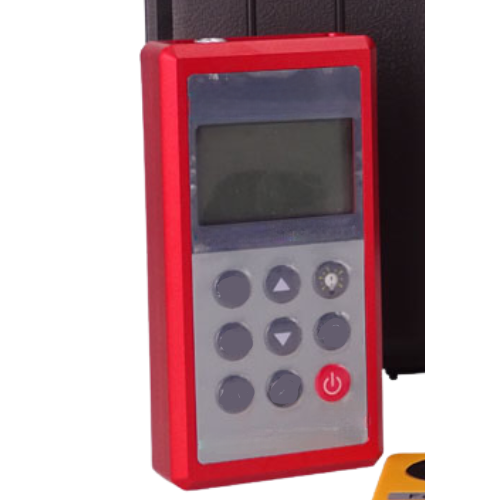

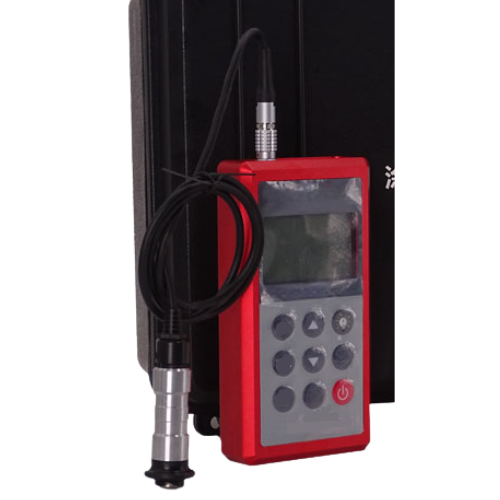

Enviro Test Consrtuct Galvanized & Non-Metal Coating Thickness Gauge, a versatile and reliable instrument designed for accurate, non-destructive measurement of coating thickness. This device adopts both magnetic induction and eddy current measurement principles, allowing it to measure non-magnetic coatings such as zinc, aluminum, chromium, copper, rubber, and paint on magnetic metal substrates like steel, iron, alloy, and hard magnetic steel. It also accurately measures non-conductive coatings, including rubber, paint, plastic, and anodized films, on non-magnetic metal substrates such as copper, aluminum, zinc, and tin. This device is ideal for professionals in industrial, automotive, and manufacturing sectors who require precise coating thickness measurements for quality control and inspection tasks.
Features
- Dual Measurement Methods
- Non-Destructive Testing
- Multiple Probe Options
- High Storage Capacity
- Accurate and Precise
- Durable Construction
- Wide Operating Range
- Flexible Measurement Modes
- Portable and Lightweight
Technical Specifications
| Measurement Principle | Magnetic induction / Eddy current |
| Measurement Range | Determined by the probe |
| Storage Capacity | 500 measurement values |
| Probe | Available with 6 different probes |
| Measurement Methods | Single measurement and continuous measurement |
| Material | Aviation metal shell |
| Operating Environment | 14 °F to 104 °F (-10 °C to 40 °C) |
| Battery | Large capacity lithium battery |
| Indication Accuracy | 0.1 µm |
| Packing Standard | 1 set of calibration plates, 1 charge |
| Shutdown Modes | Manual and automatic |
| Size | 5.31 in × 2.76 in × 0.98 in (135 mm × 70 mm × 25 mm) |
| Weight | 11.29 oz (320 g) |
