Technical Specifications

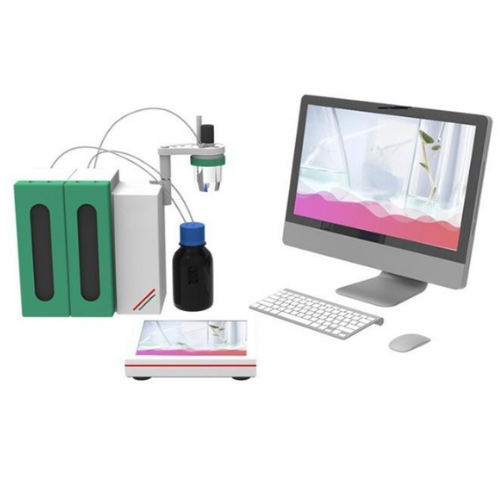

| Model | ETCHPM-299 |
| Measuring range | -2000.0mV ~ +2000.0mV -20.000pH ~ +20.000pH |
| Resolution | 0.1mV 0.001pH |
| Precision | 0.1mV 0.003pH |
| Measurement mode | MEAS: measure pH / mV / T CAL: pH calibration (multi-point) SET: Set the end point mode MET: equivalent titration DET: Dynamic Titration |
| Titration mode | Acid-base titration / Redox titration / Precipitation titration / Complexometric titration / non-aqueous |
| Titration cup capacity | 250ml |
| Temperature measurement range | -5 ~ 120℃ |
| Temperature measurement accuracy | ±0.1℃ |
| Communication method | 2*USB, 232 serial ports, Ethernet |
| Dosing unit | Built-in dosing unit |
| Dosing module unit | 2 sets of built-in titration dosing channels |
| Expandable number of dosing channels | 8 |
| Burette specifications | 1ml, 5ml, 10ml, 25ml, 50ml (10ml Standard) |
| Burette resolution | 1/48,000 |
| Burette refill time | 10 seconds (100% filling speed) |
| Control unit | PC with software (additional to the computer) |
| Autosampler | Can be used in conjunction with the GT robot sampling system for the analysis of large quantities of samples |
| Self-check function | Automatically check the status of the instrument after starting |
| Calibration function | YES |
| Application editing function | YES |
| Storage | More than 300G |
| Default method | More than 300G |
| Comply with FDA, GMP, GLP | Audit trail, hierarchical management, electronic signature |
| Pipeline | PTFE titration line (corrosion resistant) |
| Stirring method | Overhead spiral stirrer or magnetic stirring |
| PTFE valve | Imported anti-corrosion rotary valve |
| Micro detection electrode | Imported |
| Micro syringe pump | Imported |
