Overview

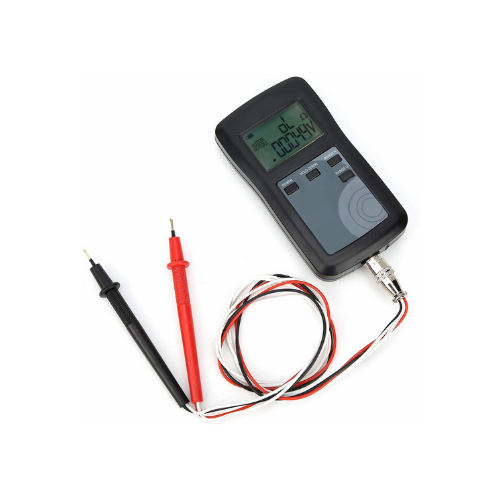

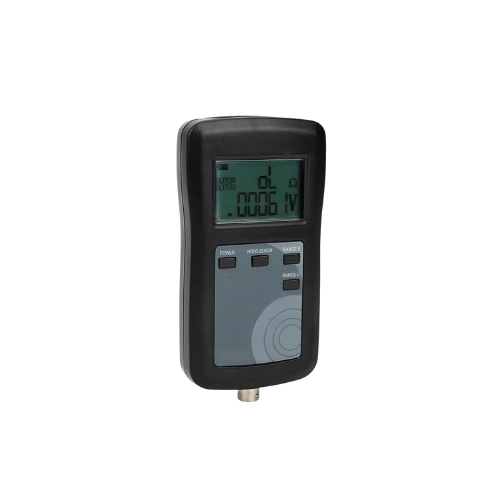

Enviro Test Construct`s four wire battery internal resistance tester with ac sinusoidal measurement battery internal resistance tester is a true four-wire internal resistance tester, which can measure the internal resistance and voltage at the same time. It can also be used to measure the resistance. The measurement results are displayed on the same screen. This tester is suitable for battery configuration, battery performance testing, battery screening and other aspects. It is structurally exquisite, easy to carry, and is an ideal electronic testing tool.
Features
- True four wire AC sinusoidal measurement for accuracy
- Simultaneous resistance and voltage measurement on one screen
- Wide internal resistance ranges 0.00001 Ω to 200 Ω
- High resolution up to 0.01 mΩ
- Dot-matrix LCD display with clear readout
- ZR function for accurate sub-milliohm measurements
- Dual function interface including battery sorting
- Built-in rechargeable 3.7 V 2000 mAh battery
- Low power consumption with multiple power-saving options
- Portable, lightweight design with gift box packaging
Technical Specifications
| Internal Resistance Range | 0.00001 Ω to 200 Ω |
| Resolution | 0.01 mΩ |
| Counts (Resistance) | 2000 counts |
| Voltage Measuring Range | 0 V to 100 V |
| Voltage Resolution | 0.00001 V (1 V range) 0.0001 V (10 V range) 0.001 V (100 V range) |
| Accuracy (Resistance) | ±0.7% + 7 digits (20 mΩ range) ±0.5% + 5 digits (other ranges) |
| Accuracy (Voltage) | ±(0.15% + specified range value) |
| Display Type | Dot-matrix LCD screen |
| Measurement Mode | True four-wire 1 kHz AC sinusoidal |
| Measurement Functions | Resistance Voltage battery sorting |
| Hold / ZR Function | Measures internal resistance as low as 0.30–0.50 mΩ |
| Data Update Rate | 4 readings per second |
| Power Supply | Built-in 3.7 V 2000 mAh rechargeable lithium battery |
| Operating Temperature | 50 °F to 104 °F (10 °C to 40 °C) |
| Maximum Terminal Voltage | 100 V |
| Dimensions | 5.12 in x 2.76 in x 1.97 in (13 cm x 7 cm x 5 cm) |
| Weight | 0.88 lb (400 g) |
