Overview

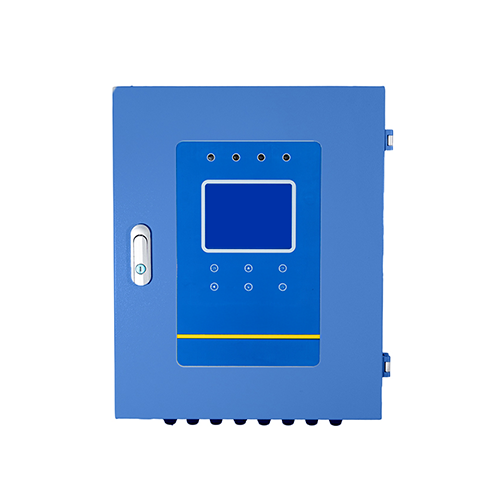

Enviro Test Construct Fixed Multi-Channel Gas Leak Detection Controller is engineered to centralize monitoring of combustible gases in complex industrial environments. Capable of interfacing with up to 16 sensor inputs, it offers live display of readings and audible warnings to help safeguard operations effectively. Featuring customizable alarm thresholds, built-in gas libraries, and automatic fault detection, it enhances safety management in control rooms and centralized monitoring stations. The rugged steel frame and modular design allow seamless integration across sectors like chemical processing, energy distribution, and manufacturing.
Features
- Accepts up to 16 sensor inputs (4–20 mA standard signal)
- Customizable alarm thresholds and configurations
- Built-in library of 30 common gases for quick setup
- Full-function self-test and transmitter fault alerts
- Displays data in ppm, %LEL, or %VOL units
- Durable steel and plastic housing engineered for industrial use that supports OEM/ODM customization
Technical Specifications
| Specification | Details |
| Input Channels | 1–16 independent gas sensor interfaces (4–20 mA) |
| Display Units | ppm, %LEL, %VOL |
| Gas Library | 30 commonly used gases preloaded |
| Alarm Modes | Configurable thresholds with sound signals |
| Self-Test Function | Full diagnostic checks and fault alarm support |
| Power Input | AC185–255 V, 50 Hz |
| Output Power | Provides DC24V, 300 mA per channel |
| Housing | High-strength cold-rolled steel plate + plastic |
| OEM/ODM Support | Available for customization |
| Usage | Centralized gas monitoring in industrial systems |
| Fail-Safe Features | Automatic sensor fault indications |
| Installation Type | Panel-mount fixed controller |
| Footprint | Compact for rack or wall installation |
