Overview

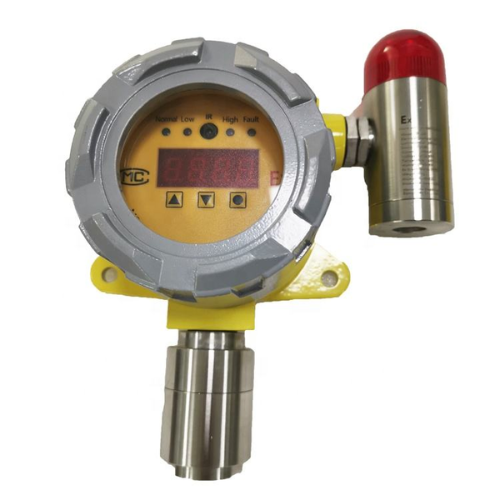

The Enviro Test Construct Fixed Combustible Gas Detector is designed for precise, continuous monitoring of flammable gases including butane, LPG, and methane. It provides versatile signal outputs (4–20 mA, RS-485, relay) and a robust IP66-rated enclosure for reliable performance outdoors and indoors. With durable catalytic sensing, wide temperature tolerance, and robust industrial certification, it’s well-suited for applications like storage facilities, pump rooms, utility areas, and production zones.
Features
- 0–100% LEL detection for combustible gases (butane, LPG, methane)
- Multiple output options: 4–20 mA, RS-485 Modbus, and relay contacts
- Rugged IP66 weatherproof housing for harsh environments
- Compact and easy to mount within industrial systems
- Certified (CE, ISO, ATEX)
Technical Specifications
| Specification | Details |
| Measuring Range | 0–100% LEL (combustible gas) |
| Signal Outputs | 4–20 mA, RS-485 communication, relay contact |
| Sensor Type | Catalytic sensor |
| Ingress Protection | IP66 rated for dust and water resistance |
| Operating Temperature | –20 °C to +50 °C |
| Power Supply | 24 V DC ±15% |
| Weight | Approx. 1,500 g |
| Enclosure Material | Durable yellow ABS/plastic |
| Hazard Certifications | CE, ISO, ATEX |
| Typical Warranty | 1 year |
| OEM Custom Support | Logo and packaging customization available |
| Installation Type | Fixed mounting (flush or surface) |
| Package Contents | Single unit per standard packaging |
| Response Time | Industry-standard catalytic response (seconds range) |
| Applications | Industrial monitoring—warehouses, utility, remote sites |
| Maintenance | Field-serviceable with common tools |
