Overview

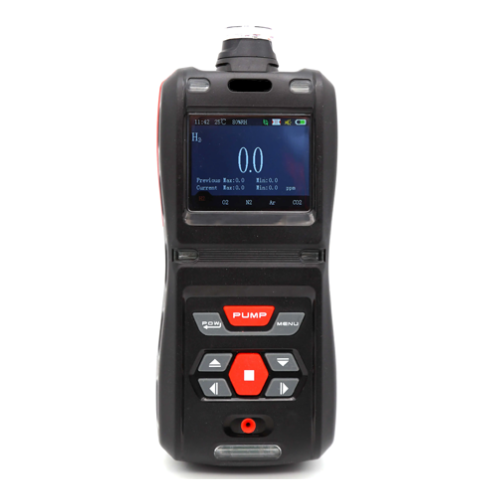

ETC portable outdoor multi-gas detector – IP65 Protection level can be used in rapid detection of variety concentration and measurement of environmental temperature and humidity, measurement exceeded the limit value, the alarm will sound adopted 2.5 inches definition color screen for real-time display, adopted the gas sensors of international well-known brands and the main detection principles.
Features
Rich human-machine interface
It can simultaneously detect 1 to 5 types of gases
Function of large-capacity data storage
It can display Maximum minimum and average value
It displays Graphical function
Data recovery function
Standard USB charging point
6000 mA
Real-time detection or timing detection
Multiple alarm mode
Multiple alarm mode settings
Zero-point automatic tracking
Multi-level calibration
Technical Specifications
Gases to be detected | Arbitrary combination of 1 to 4 types of gases such as toxic gases |
Detection Range | 0 ppm to 100000 ppm |
Explosion-proof Grade | Exia Ⅱ CT3 |
Resolution | 0.01 ppm or 0.001 ppm |
Maximum Allowance Error | ≤ ± 3 % F.S |
Linearity | ≤ ± 2 % |
Repeatability | ≤ ± 2 % |
Uncertainty | ≤ ± 2 % |
Response Time | T90 ≤ 30 sec |
Recovery Time | ≤ 30 sec |
Protection Level | IP 65 |
Explosion-proof Type | Ex ia IIC T4 Ga |
Sample Gas Temperature | – 40°F to 158 °F (– 40℃ to 70℃) |
Exterior Dimensions | 7.67 in × 3.03 in × 1.81 in (19.5 cm × 7.7 cm × 4.6 cm) |
Weight | 12.34 oz (350 g) |
