Overview

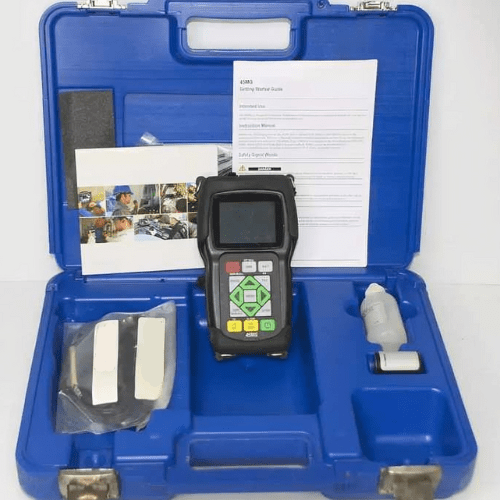

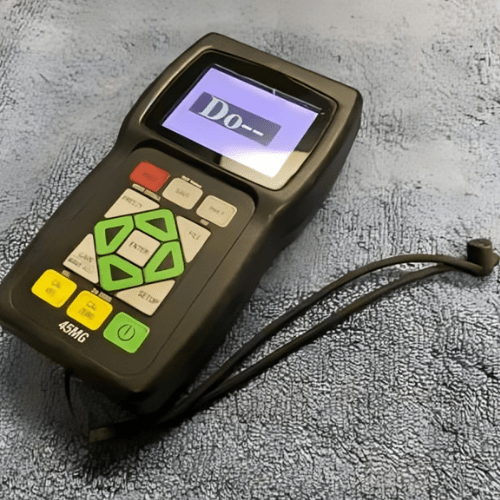

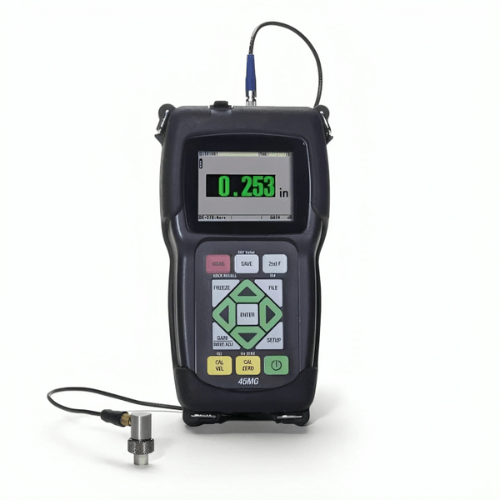

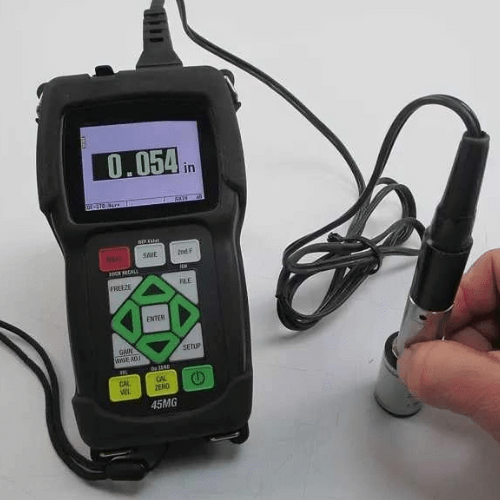

Enviro Test Consrtuct Wired Coating And Material Thickness Gauge is an advanced ultrasonic thickness gage packed with standard measurement features and software options. This unique instrument is compatible with the complete range of Olympus dual element and single element thickness gage transducers, making this innovative instrument an all-in-one solution for virtually every thickness gage application.
Features
- Broad Thickness Range
- Compatibility with Olympus Transducers
- Selectable Resolution Options
- Robust Build for Harsh Environments
- Comprehensive Data Management
Technical Specifications
| Thickness Range | 0.01 in to 25.0 in (0.080 mm to 635 mm) Depending on Material, Transducer, Surface Conditions, Temperature, and Selected Configuration (Full Range Requires Single Element Option) |
| Material Velocity Range | 0.020 in/us to 0.7362 in/us (0.508 mm/us to 18.699 mm/us) |
| Resolution (Selectable) | Low: 0.01 in (0.1 mm) Standard: 0.01 in (0.01 mm) Single Element Option: 0.01 in (0.001 mm) |
| Transducer Frequency Range | Standard: 2.25 MHz to 30 MHz (-3 dB) High Penetration (Single Element Option): 0.50 MHz to 30 MHz (-3 dB) |
| Operating Temperature Range | 14 °F to 122 °F (-10 °C to 50 °C) |
| Keypad | Sealed, Color-Coded Keypad with Tactile and Audible Feedback |
| Case | Impact-Resistant and Water-Resistant, Gasketed Case with Sealed Connectors. Designed for IP67. |
| Power Supply | 3 AA Batteries/USB Power Supply |
| Battery Life Operating Time | 3 AA Alkaline: 20 to 21 Hours 3 AA NiMH: 22 to 23 Hours 3 AA Lithium: 35 to 36 Hours |
| Standards | Designed for EN15317 Explosive Atmosphere Tested Using MIL-STD-810G, Method 511.5, Procedure I |
| DISPLAY | |
| Color Transflective QVGA Display | Liquid Crystal Display, Display Area 2.15 in. x 1.62 in. |
| Rectification | Full Wave, RF, Half-Wave Positive, or Half-Wave Negative (Waveform Option) |
| Memory Card | Maximum Capacity: 2 GB Removable MicroSD Memory Card |
| Data Logger | The 45MG Gage Identifies, Stores, Recalls, Clears, and Transmits Thickness Ratings, Waveform Images, and Gage Configuration Information through USB or Capacity 475,000 Thickness Measurements or 20,000 Waveforms with Thickness Measurements |
| File Structures | Six Standard or Custom Application-Specific File Structures |
| Reports | On-Gage Reporting of Summary with Statistics, Min./Max. with Locations, Min. Review, File Comparison, and Alarm Report |
| Dimensions | Overall: 3.59 in. x 6.38 in. x 1.62 in. (91.1 mm x 162 mm x 41.1 mm) |
| Weight | 0.95 lb (430.9 g) |
