Overview

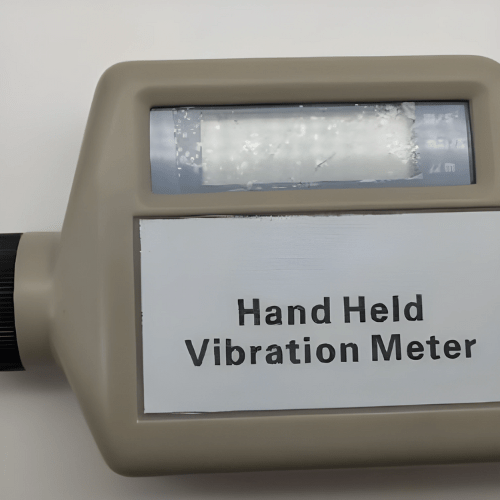

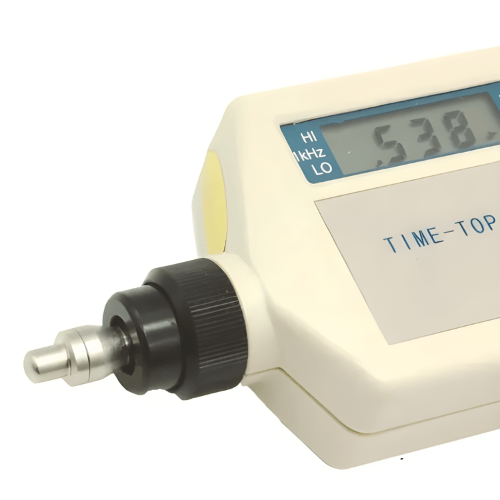

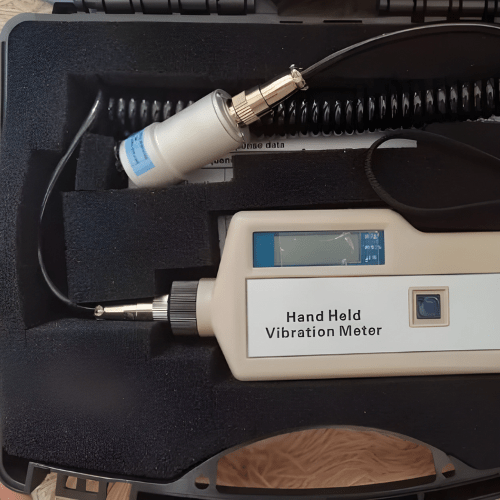

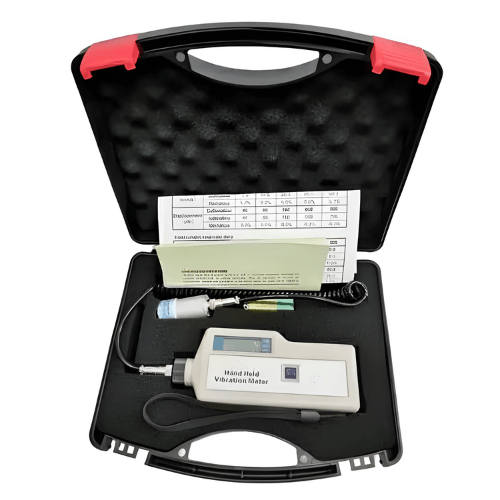

Enviro Test Consrtuct vibration meter is a kind of integrated, pocketsize instrument for vibration measurement of rotating machinery. With the capability to measure the displacement, velocity and acceleration of objects easily, the meter can be applied in industry departments such as electric power, petroleum, chemical engineering and metallurgy to meet different occasions.
Technical Specifications
| Measure Range | Vibration Displacement: 0 um to 1999 um (P-P) Vibration Velocity: 0 mm/s to 199.9 mm/s (RMS) Vibration Acceleration: 0 m/s2 to 199.9 m/s2(O-P) |
| Display | 3 1/2-digit LCD |
| Frequency Response | Displacement 10 Hz to 200 Hz Velocity 10 Hz to 500 Hz Acceleration 10 Hz to 1000 Hz |
| Linearity And Accuracy | Displacement 0 um to 20 um ±10% >20 um ±5% Velocity 0 mm/s to 2.0 mm/s ±10% >2.0 mm/s ±5% Acceleration 0 m/s2 to 2.0 m/s2 ±10% >2.0 m/s2 ±5% |
| Power | 6 F22 batteries (9 V) |
| Low Voltage Indication | If battery voltage <5.5 V, a battery mark appears on the LCD, then replace the battery with new one. |
| Battery Life | approx. 25 h under continuous use |
| Hold Function | the displayed vibration value is hold and kept for one minute after the MEAS button is released |
| Ambient Temperature | 14 °F to 104 °F (0 °C to 40 °C) |
| Ambient Conditions Operation | Temperature 14 °F to 104 °F (0 °C to 40 °C) Humidity ≤80% Atmosphere pressure 75 kpa to 106 kpa Dimension 7.28 in x 2.68 in x 1.18 in (185 mm × 68 mm × 30 mm) Weight 0.77 lb (350 g) (including battery) |
