Overview

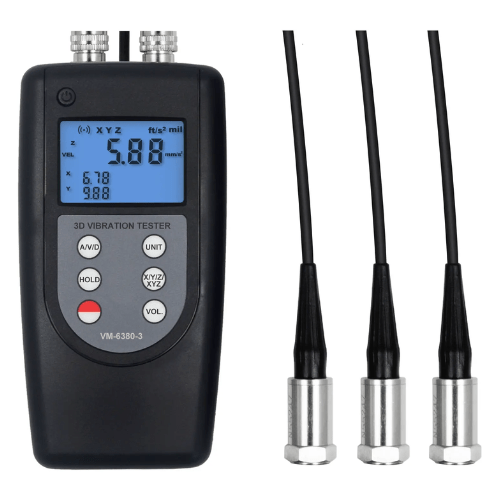

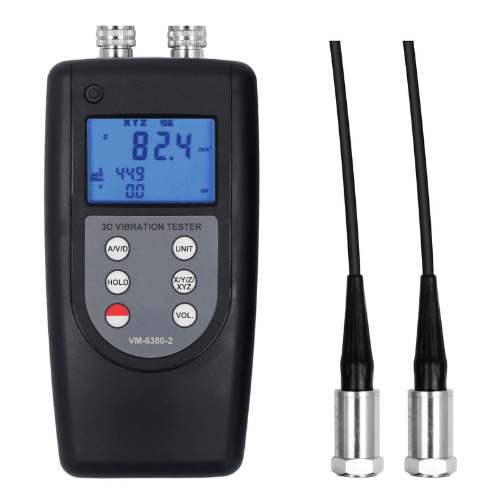

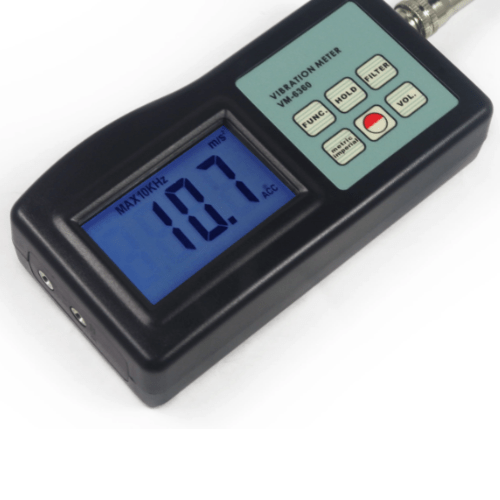

Enviro Test Consrtuct vibration measuring instrument is used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.
Features
- 3 parameters in one display for 3 position measurement
- ISO 2954 compliant for periodic measurements, detecting faults
- Specially designed for on-site vibration measurement
- Individual high-quality accelerometer for precise measurements
- Wide frequency range (10Hz to 10kHz) in acceleration mode
- Optional headphones for electronic stethoscope use
- Bearing condition monitoring function included
- “USB data output” & “RS-232 data output” for PC connection Top of Form
Technical Specifications
| Sensor | Piezoelectric Transducer |
| Measuring Parameters & Range | Acceleration 0.39 ft/s to 1312.34 ft/s (0.1 m/s to 400.0 m/s) Equivalent Peak; 0.0 to 40G Velocity 0.0004 to 15.74 in/s (0.01 mm/s to 400.0 mm/s) Displacement 0.00039 in to 0.16 in (0.001 mm to 4.000 mm) Equivalent Peak-Peak |
| Frequency Range | Acceleration 10 Hz to 10 kHz Velocity 10 Hz to 1 kHz Displacement 10 Hz to 1 kHz |
| Accuracy | ± (5% n + 0.2) |
| Analogue Output | AC Output 0 V to 2.0 V Peak Full Scale (Load Resistance Above 10k) |
| Power Off | Manual Power Off or Auto Power Off |
| Battery Indicator | Low Battery Indicator |
| Data Output | USB, RS-232 |
| Operating Conditions | Temperature 32 °F to 122 ˚F (0 °C to 50 °C) Humidity <90% RH |
| Power Supply | 4 x 1.5V AAA size (UM-4) Battery |
| Dimensions | 5.51 in x 2.87 in x 1.38 in (140 mm x 73 mm x 35 mm) |
| Weight | 0.91 lb (415 g) |
