Overview

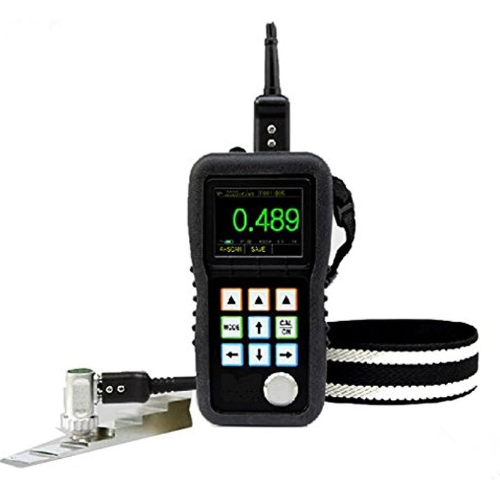

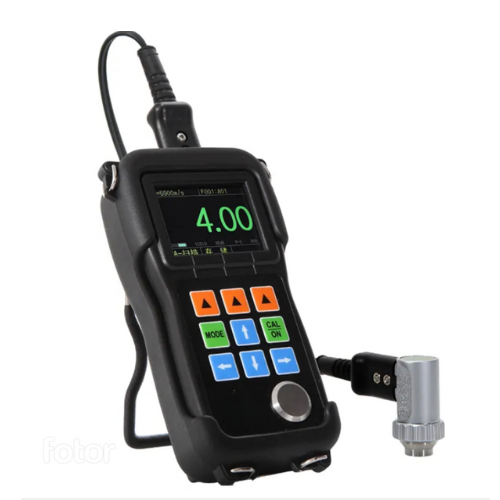

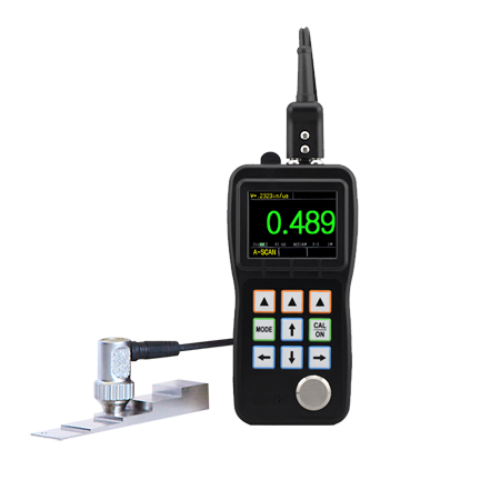

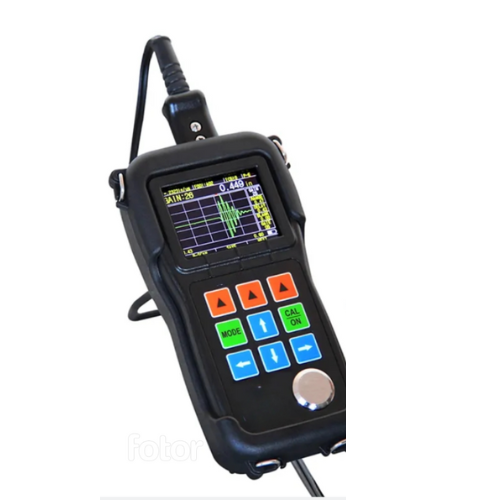

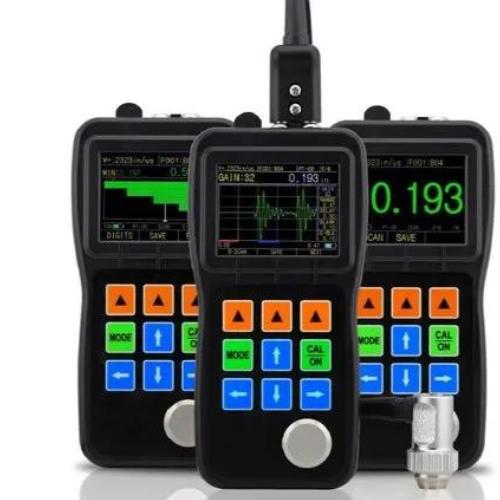

Enviro Test Consrtuct Ultrasonic Thickness Gauges through Paint Coating are specialized devices used for measuring the thickness of a material or substrate even when it is coated with paint or other coatings. They employ ultrasonic technology to accurately determine the thickness of the underlying material by sending high-frequency sound waves through the coating. These gauges are particularly useful in industries where it is necessary to assess the integrity and corrosion resistance of structures, such as in manufacturing, construction, and oil and gas. By providing non-destructive measurements, they help identify potential issues like thinning or corrosion, allowing for timely maintenance and ensuring structural safety.
Features
- Ultrasonic technology
- Measures thickness through paint coatings
- Non-destructive testing
- Accurate and reliable measurements
- Suitable for various industries
- Helps assess structural integrity and corrosion resistance
- Portable and handheld design
- User-friendly operation
- Essential for quality control and inspection
- Supports timely maintenance and safety measures.
Technical Specifications
| Product name | Ultrasonic Thickness Gauge |
| Rectify Modes | AB Scan Ultrasonic Thickness Gauge |
| Operating Principle | Pulse echo with dual element transducers |
| Display Type | 2.4” TFT color |
| Unit | Mm/inch (selectable) |
| Measuring range | 0.02 in to 20.00 in (0.5 mm to 508 mm) |
| Update Rate | Selectable 4Hz, 8Hz, 16Hz |
| Resolution | 0.0003937 in, 0.003937 in (0.01mm, 0.1mm) |

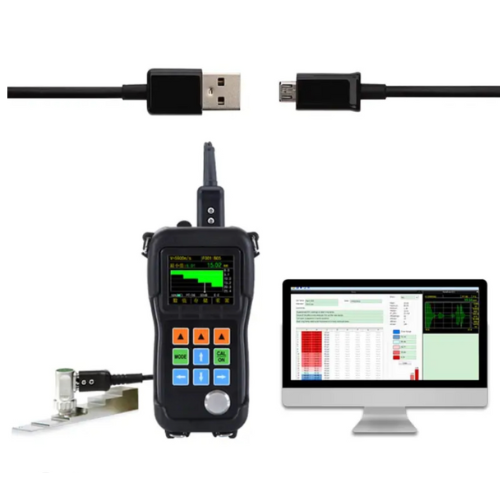

| Communication Port | USB 2.0 (Full Speed) port |
| Capacity | 100,000 readings, 1000 waveforms, 400 files |
